TENNIS


Posts are 770mm high and supplied with TBW16 barrel winder and sleeve cover plates.
Posts to suit 100mm ground sleeves.
Modifications available such as coloured tennis net posts and net head band (on request).


Note: A visual check over the product should be conducted once a month to ensure the highest level of product performance.

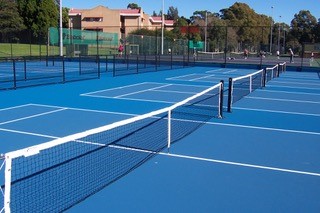

EXTERNAL WINDER POSTS – HOT SHOTS

HOT SHOTS

The posts are made from 75mm square galvanised steel and finished with hi gloss two pack urethane paint. There are no dangerous parts protruding from the post when the net is left unattached.

CENTRE STRAP

TN/CS

Centre strap with metal clip, 50 mm wide webbing with velcro adjustable seam.

Similar centre strap style featured in this installation video

2 Year Manufacturers Warranty

LUXURY UMPIRE CHAIR

TC60

Umpire the game in complete comfort and advantage view point. You can now have a luxury umpire chair for your Tennis court.

Supplied in kit form.

Features:
* Sea captains comfort chair
* Rectangular steel frame with carpeted chair platform
* 700 x 800mm platform enclosed on three sides hand rails
* Height adjustable chair pedestal, to maximum height 1970mm.
* Fold away table
* Drink bottle holder
* Non-marking front leg skid
* Rear wheels
* Removable steel framed canopy with solid plaspanel cover
* Two pack urethane painted finish
* 5 Year Manufacturers Warranty
Note: A visual check over the TC60 should be conducted once a month to ensure the highest level of product performance.

SHOW COURT UMPIRE CHAIR

TC60I

The TC60i Umpire Chair is the same chair used at Pat Rafter Arena in Brisbane. A premium international show chair customised with covered seats, suitable for your show court.  Made in Australia from 150mm x 50mm galvanised steel frame. Umpire the game in complete comfort. You can now have a luxury chair for your tennis court.


Details:
* Pedestal padded chair height: 1,970mm
* Sportmane cushion seat
* Two pack urethane gloss finish for a lasting shine
* Platform mounted sea captains chair on a height adjustable pedestal
* Platform enclosed on 3 sides with hand rails for easy access
* Fold up table
* Drink bottle holder
* Esky shelf
* Non-Marking front leg skid
* Polyurethane front skid
* Optional varnished timber steps (default is white as shown in the photograph)
* 240v power outlet
* Side panels
* Polypropylene canopy

This chair comes in a kit form.

Designed and Made in Australia.

STANDARD GROUND SLEEVES

EP, EL, ES & EA

Different types of ground sleeves are used for different applications. We offer PVC, steel and aluminium ground sleeves.

– PVC tubing ground sleeves are our standard sleeve for regular size games posts. They are ideal for steel and aluminium games posts because there is no likely fusion between the post and sleeve. They are strong when encased in concrete. They suit EL caps which are made from steel and hot dip galvanised.

– When an alternative size sleeve is required we can provide steel ground sleeves which in some instances have a PVC lining to limit the amount of play between the sleeve and games post.

– Aluminium sleeves provide more sizing options and when used for steel games posts, have a PVC lining.

Standard sleeves suit games posts of; 60mm round, 75mm square and 89mm round. Other sizes available to order.

EL

STEEL CAP

Caps are made from steel and are hot dip galvanised.

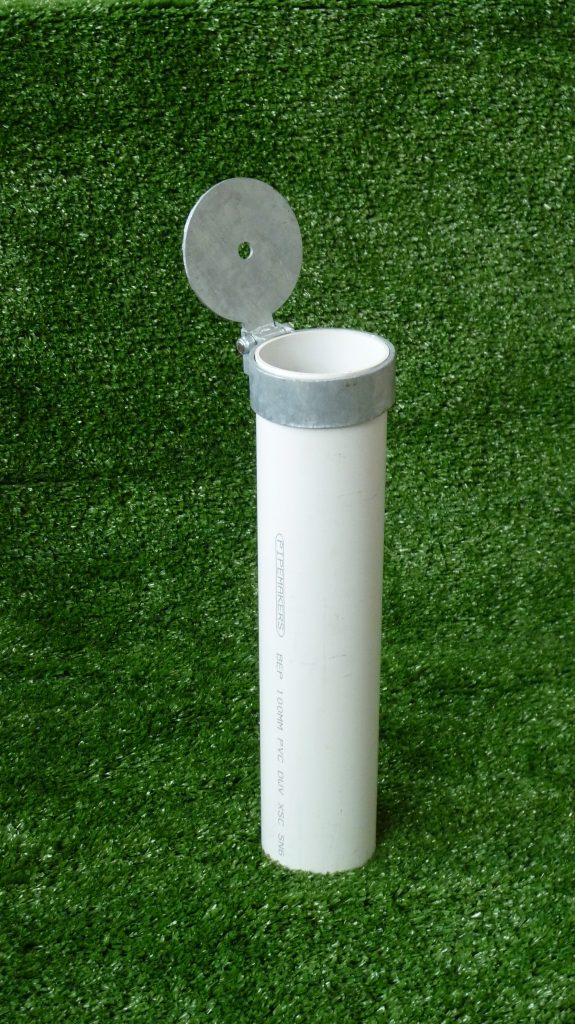

HINGED GROUND SLEEVES

EHC

Ground sleeves that have a hinged lid attached to the PVC ground sleeve. PVC sleeves have a steel surround fitted to the top of the sleeve which houses the hinged lid. Steel and aluminium sleeves have the hinge mechanism welded to the top of the sleeves.

Standard sleeves suit games posts of; 60mm round, 75mm square and 89mm round. Other sizes available to order.

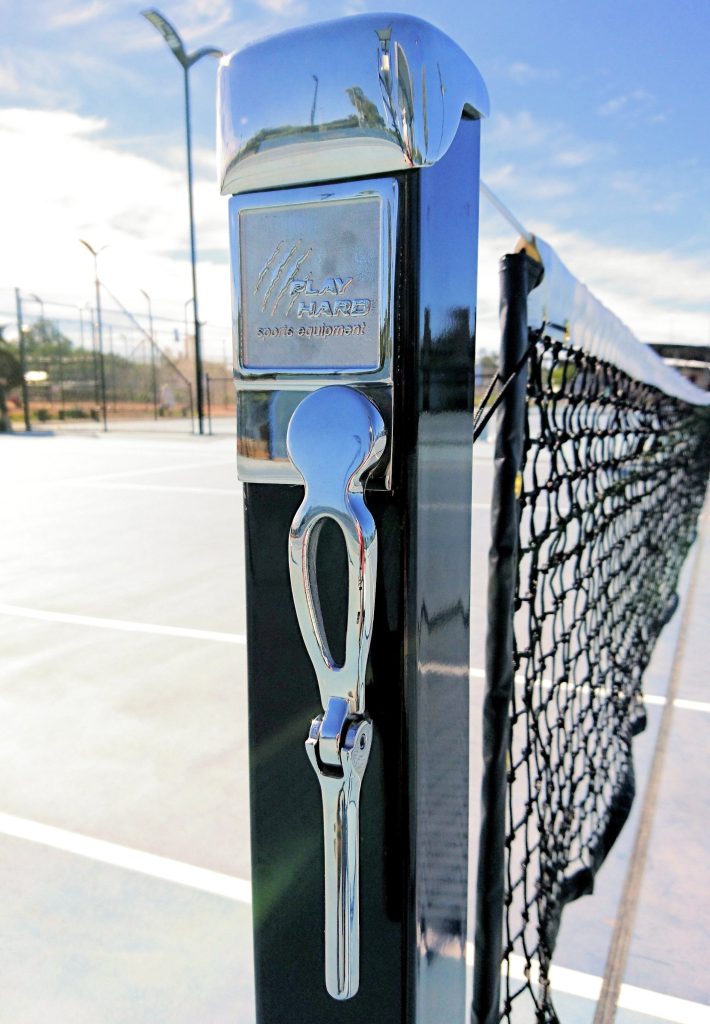

INTERNAL WINDER POSTS

EXCALIBUR (THE KING)

The posts are made from (8000 ULTRAGAL C350) 75mm square tennis net posts deliver superior scratch resistance and comprise of zinc (Zn), aluminium (Al), and magnesium (Mg) – providing maximum durability 2.5 times harder than galvanised steel, maximum efficiency, and maximum versatility. The stainless steel fittings are a stand out feature. The bronze and stainless steel gears are longer wearing than brass.

With high corrosion resistance and good galvanic protection, these tennis posts are ideal for corrosive environments, such as coastal / bay areas.

The active end winding post has an internal stainless steel and bronze machined finish internal winder mechanism to tension the net cable for performance and precise winding action. The post cap has a cable wheel, drop-down handle, and nameplate, all made from stainless steel.
The safety handle is removable and drops flat against the post when not in use. The cable is tensioned by feeding excess net cable through a hole in the drum gear and winding the handle. Posts are supplied with sleeve cover plates.
The posts have Waverail welded from top to bottom for side net tying.
Finished in gloss black two-pack urethane for a long-lasting shine.
The nonwinding post has an internal hook for the net cable and a stainless steel cap.

Benefits:

• Corrosion-resistant for longevity
• Displays a high-quality surface finish
• Superior scratch resistance
• No sharp edges
• Maximum durability

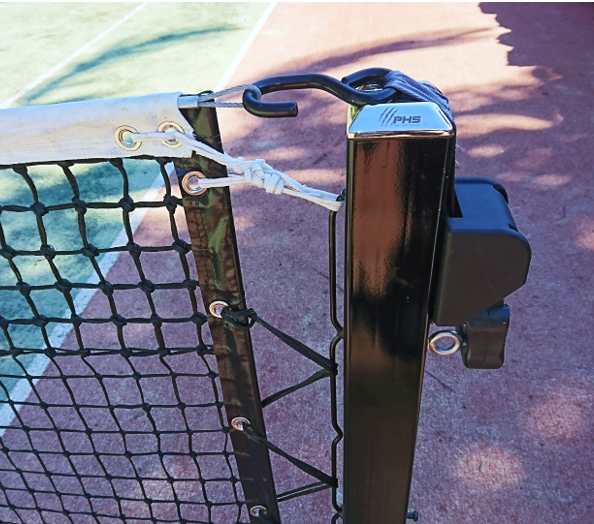

EXTERNAL WINDER POSTS

TBW75

Ideal system for multipurpose courts. The posts are made from 75mm square galvanised steel and finished with gloss two pack urethane. There are no dangerous parts protruding from the post when the net is left unattached.

Posts are supplied with TBW16 barrel winder and sleeve cover plates.

EXTERNAL WINDER POSTS – HALF COURT

TBW75/2

Ideal system for multipurpose courts. Posts are 770mm high for half court tennis use.

The posts are made from 75mm square galvanised steel and finished with gloss two pack urethane. There are no dangerous parts protruding from the post when the net is left unattached.

Posts are supplied with TBW16 barrel winder and sleeve cover plates.

BARREL WINDER

TBW16

The barrel winder is a unique winder featuring a drop down safety handle made from stainless steel.

The 16mm diameter stainless steel shaft fits existing external winder posts and can be used as a replacement for old conventional winders.

Made from stainless steel and coated black, the barrel winder has no sharp edges and provides a neat appearance even when the net is removed. Ideal for applications where the net is continually removed.

Please note: To wind the net up, please make sure to grip the barrel section firmly, as you wind the handle, allowing the net to tighten. Re frame from tightening the net to tight. Always allow for a slight amount of slack in the net from net post to net post.

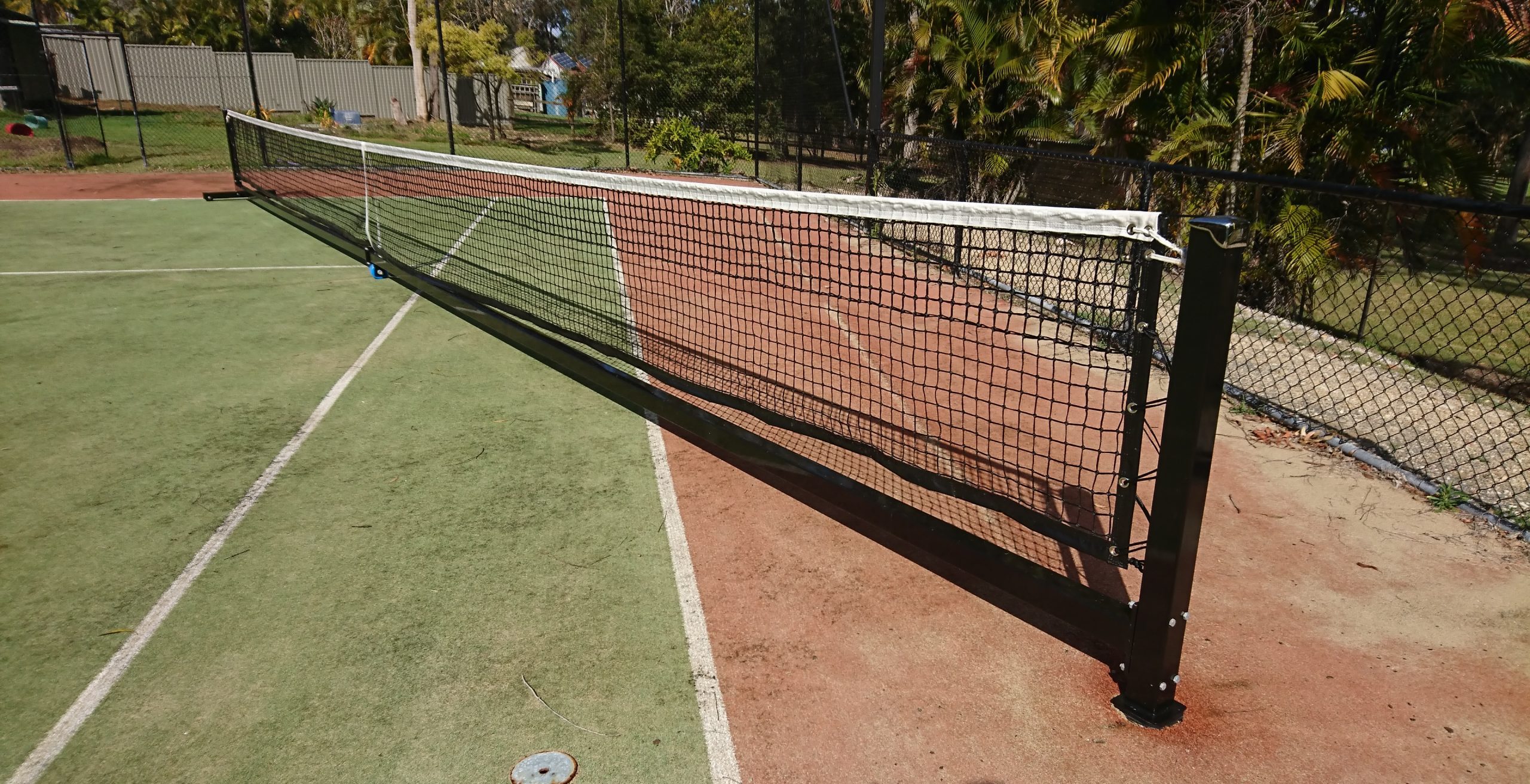

PIVOTING NET POSTS

TBW75/P & TIW75/P

Ideal for courts that are used for several sports. The wheel away system is fast and convenient and does not require the net to be adjusted. The net can be wheeled out of the way in a matter of seconds and re-aligned for tennis just as quick.

This model has one post pivoting in a standard ground sleeve while the other post is movable on wheels. Requires one person to operate. Spans 12.8 metres. Available in both internal and external type tennis posts.

Supplied in kit form with posts, net and ground sleeve.

Spec Download featuring the wheel assembly detail.

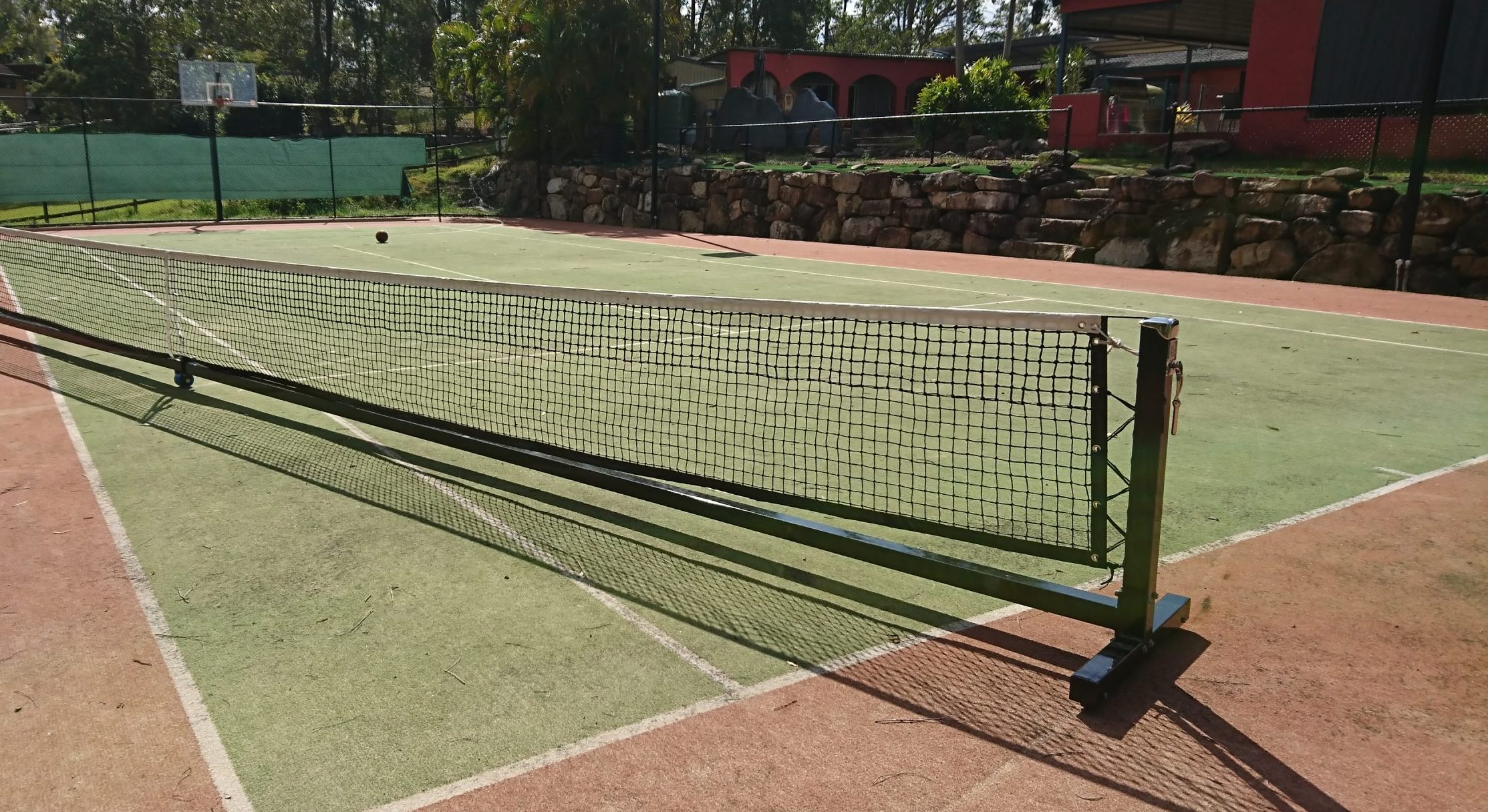

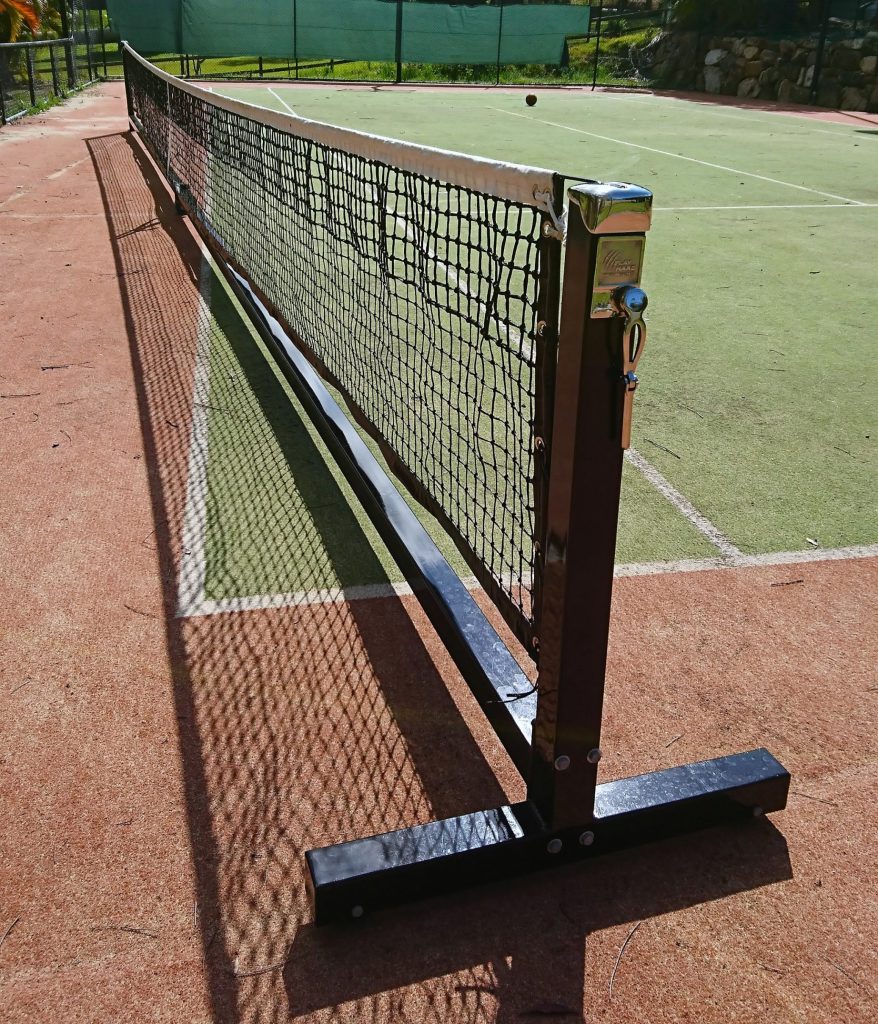

FREE STANDING NET POSTS

TBW75/F & TIW75/F

Ideal for courts that are used for several sports. The free standing system is fast and convenient and does not require the net to be adjusted. The net can be wheeled out of the way in a matter of seconds and re-aligned for tennis just as quick.

Both ends have wheels which allows the unit to be removed from the court. Requires two people to operate. Available in both internal and external type tennis posts.

Supplied in kit form with posts on wheels and net.

STANDARD UMPIRE CHAIR

TC25

Play Hard Sports have re-defined what a budget model umpire chair is. This stylish chair is rugged with a 100 x 50mm main frame and comes with extra features that are now standard equipment.

Supplied in kit form, bolts secure the frame and screws secure the seat to its base.

Features:
* Steel frame with seat height 1470mm.
* Plastic moulded seat
* Non-marking front skid
* Rear wheels
* Umbrella holder (Optional: Steel framed canopy)
* Painted black

ANCHOR – EYE BOLT

TN/AB

Eye bolt centre strap anchor. The anchor fits into a 10mm dia. hole in a concrete slab.

Eye bolt centre strap anchor featured in Excalibur tennis net post installation video

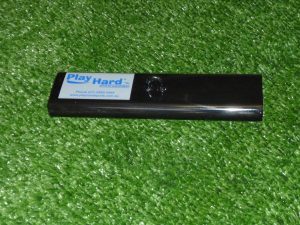

ANCHOR – WEIGHTED BASE

TN/AW

Weighted centre strap anchor. The steel rectangular eight kilogram weight has a rubber line base to protect the playing surface. Size 300 x 115 x 38mm.

PREMIUM UMPIRE CHAIR

TC40

Sit in comfort with this stylish chair. It has a rugged 100 x 50mm main frame and comes with all the features you need.

Supplied in kit form, bolts secure the frame and screws secure the seat to its base.

Features:
* Steel frame with seat height 1670mm.
* Padded moulded seat.
* Timber stairs and non-marking front skid.
* Rear wheels.
* Fold down table.
* Water bottle holder.
* Removable steel framed canopy with solid Polyboard cover.
* Painted finish.

EXTERNAL WINDER NET – STANDARD

TN22

Braided polyethylene net, 3mm cord, fabric headband, double mesh at the top, 12.2m x 770mm.

Suits TBW75 external winder Tennis posts.

EXTERNAL WINDER NET – HALF COURT

TN12

Braided polyethylene, 2.5mm net, single mesh 45mm square, vinyl headband, 6.5m long x 600mm drop, steel cable 10m long.

Suits half-court sized TBW75 external winder Tennis posts.

INTERNAL WINDER NET – STANDARD

TN40

Top quality net for internal winder Tennis posts. Braided polyethylene net, 3mm cord, 48mm mesh size, double mesh at top, tarpaulin headband, side dowels, 12.7m long x 770mm drop.

Suits Excalibur internal winder Tennis posts.

INTERNAL WINDER NET – FULL DROP

TN42

Full drop net for internal winder posts. Same mesh and quality as standard net (TN40) net but has a 900mm drop.

Braided polyethylene net, 3mm cord, 48mm mesh size, double mesh at top, tarpaulin headband, side dowels, 12.7m long x 900mm drop.

Suits Excalibur internal winder Tennis posts.

ANCHOR – SPIKE BASE

TN/AS

Hot dip galvanised star anchor that can be driven into asphalt or clay surfaces. The anchor has a circular head with centre strap bar and a spike base.

ANCHOR – SET IN CONCRETE

TN/A

Tennis net strap Stainless steel tubular ground anchor. Set into a concrete slab at time of pouring or grouted into a core drilled hole. Sits flush to the playing surface.
