BASKETBALL

All products supplied by PHS are designed in-house and all basketball towers have been Load tested to 250Kg and cycle tested to 100,000 cycles.

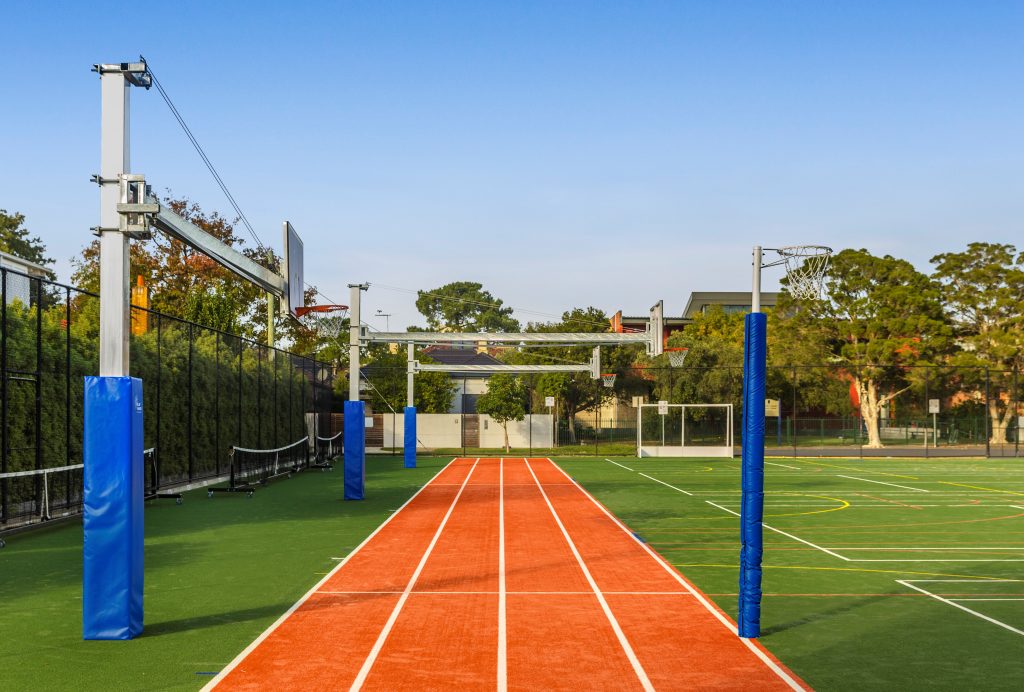

RAPTOR

SIDE SWING BASKETBALL TOWER

Are you looking for a tower to suit your multipurpose court? Are you limited for space but want room for several sports activities on the court? Then you need a Raptor Side Swing Tower. With only 1 hole to dig for a single pole, the Raptor Basketball Tower is used on Multipurpose Courts when various sports are being played, such as Volleyball, Netball or Tennis.

The Raptor can be set in line with the fence and also folds flat in line with the pole for optimal space and usage. The new aluminium main pole for the Raptor is considerably lighter allowing for less machinery/labour cost when installing allowing for additional cost savings. The main pole used to weigh 300Kg, and now with the new aluminium main pole it’s 95kg – reducing around 60% of the weight and making it easier to install.

FEATURES

  • Single 178mm square Aluminium Main Pole (95kg) – Raptor 420 & 445
  • Single 200mm square Steel Main Pole – Raptor units with over 4.5m outreach
  • Integrated side swing feature on twin extension arm for backboard to sit flush with the baseline/fence.
  • 300kg load rating ring with Waverail net attachment (eliminates broken hooks & net entanglement)
  • Various sizes available to suit your court size as well as custom length option
  • 25 Year Manufacturers Warranty on pole and arm / 10 Year Warranty on polyboard backboard / 25 Year Warranty on ring / 1 Year Warranty on net.
  • Note: A visual check over the tower should be conducted once a month to ensure the highest level of product performance.
AVAILABLE OPTIONS:

Raptor 420: With a 34m long tennis court and 28m long basketball court, the Raptor 420 outreach from pole face to backboard face is 4.2m (3m from b/ball baseline to fence + 1.2m backboard overhang into b/ball court) when the pole is flush to the fence line.

Raptor 445: With an outreach of 4.45m, the Raptor 445 is suited to a 34.5m court.

Raptor E: For tennis courts longer then 34.5m, the longer extensions of Raptor E are used. For example, a 36m tennis court would require a Raptor E extension of 5.2m (4m from b/ball baseline to fence + 1.2m backboard overhang into b/ball court).

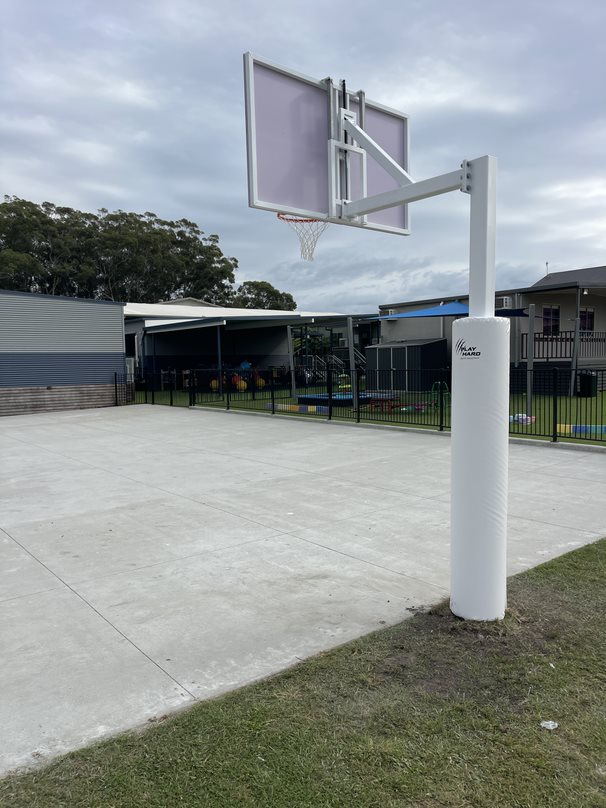

S100 / S100BP

FIXED 1.7M OUTREACH BASKETBALL TOWER

The S100 Basketball Tower is designed for full size basketball courts and practice areas. This tower gives half a metre clearance from the baseline to the pole face and is durable and rigid. For ease of handling, the pole and arm are supplied separately. The polyboard backboard is fixed to the aluminium frame in the factory.

S100BP: The Unit is fixed to a Base Plate



FEATURES

  • 125mm square main pole with 100mm x 100mm extension arm (1.7m outreach)
  • B1810 full size noise dampened backboard attached to aluminium frame
  • 300kg load rating Pro Rim Ring with Waverail net attachment (eliminates broken hooks & net entanglement)
  • 25 Year Manufacturers Warranty on pole and arm / 10 Year Warranty on polyboard backboard / 25 Year Warranty on ring / 1 Year Warranty on net
  • Note: A visual check over the tower should be conducted once a month to ensure the highest level of product performance.

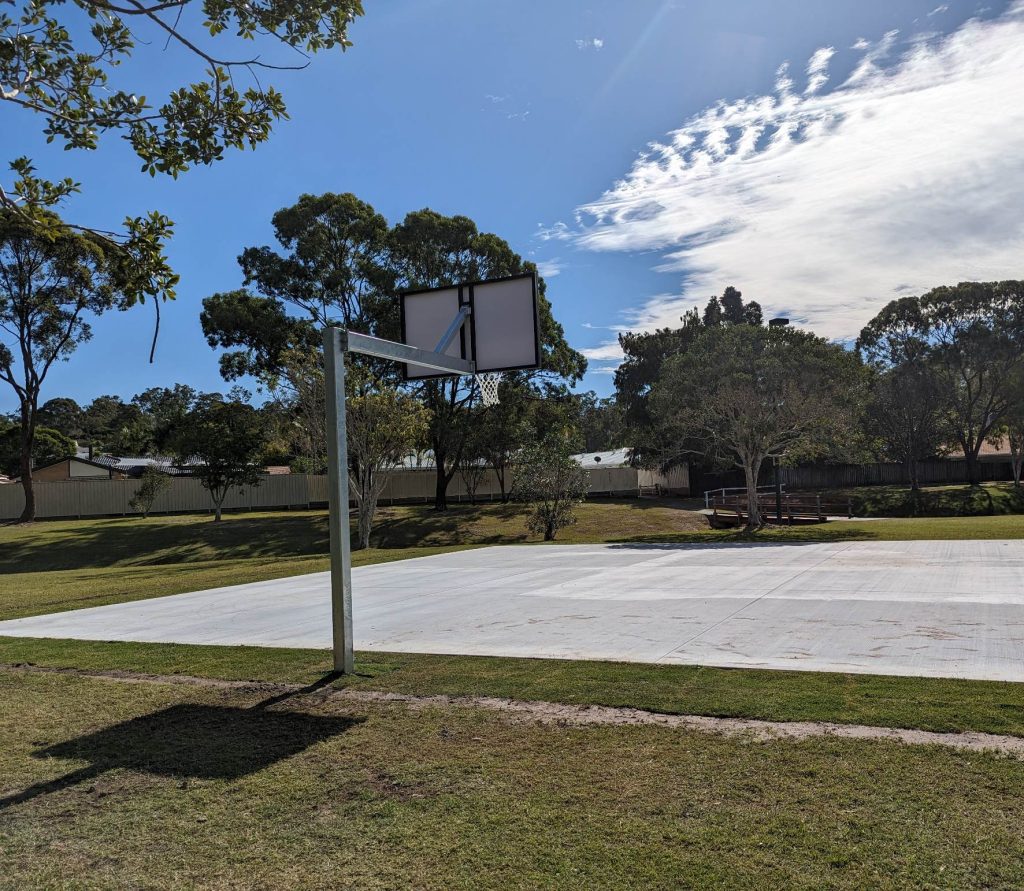

S125

FIXED 2.2M OUTREACH BASKETBALL TOWER

This tower is designed for full size basketball courts, council half courts and practice areas. This tower gives a full metre clearance from the baseline to the pole face and is extremely durable and rigid. For ease of handling, the pole and arm are supplied separately. The polyboard backboard is fixed to the aluminium frame in the factory.

FEATURES

  • 125mm square main pole with 150mm x 100mm extension arm (2.2m outreach)
  • B1810 full size noise dampened backboard attached to aluminium frame
  • 300kg load rating ring with Waverail net attachment (eliminates broken hooks & net entanglement)
  • 25 Year Manufacturers Warranty on pole and arm / 10 Year Warranty on polyboard backboard / 25 Year Warranty on ring / 1 Year Warranty on net
  • Note: A visual check over the tower should be conducted once a month to ensure the highest level of product performance.

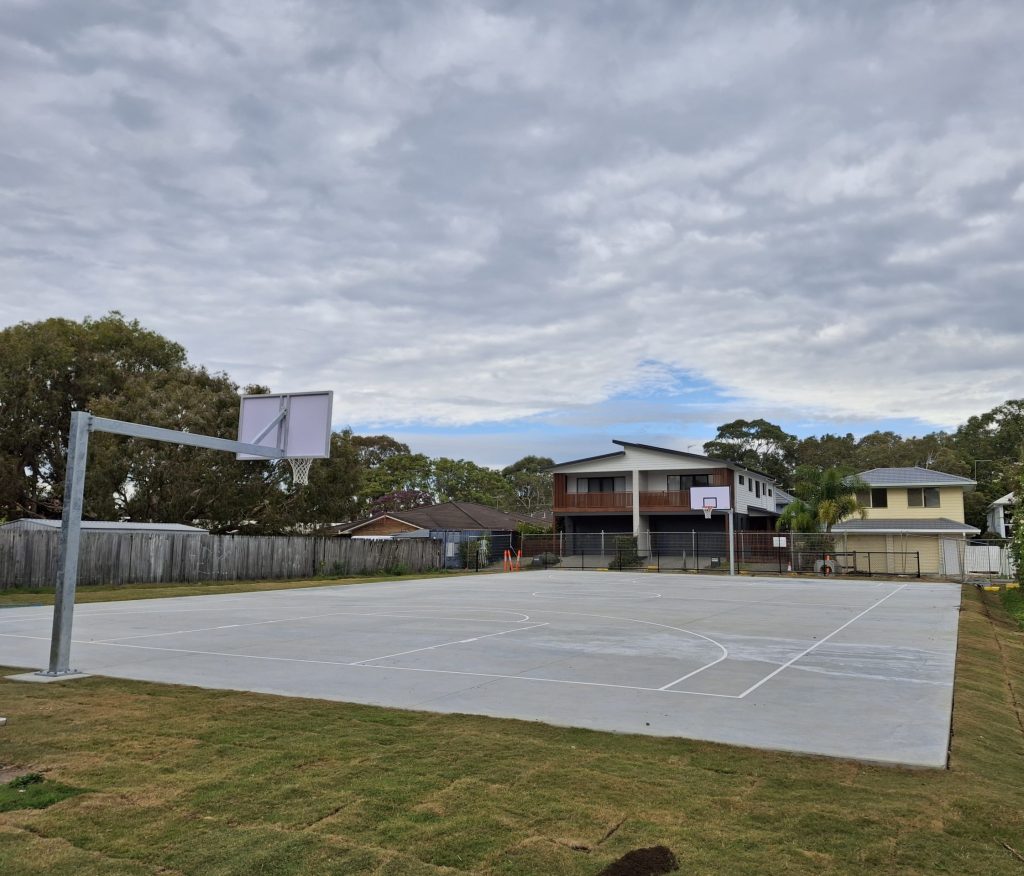

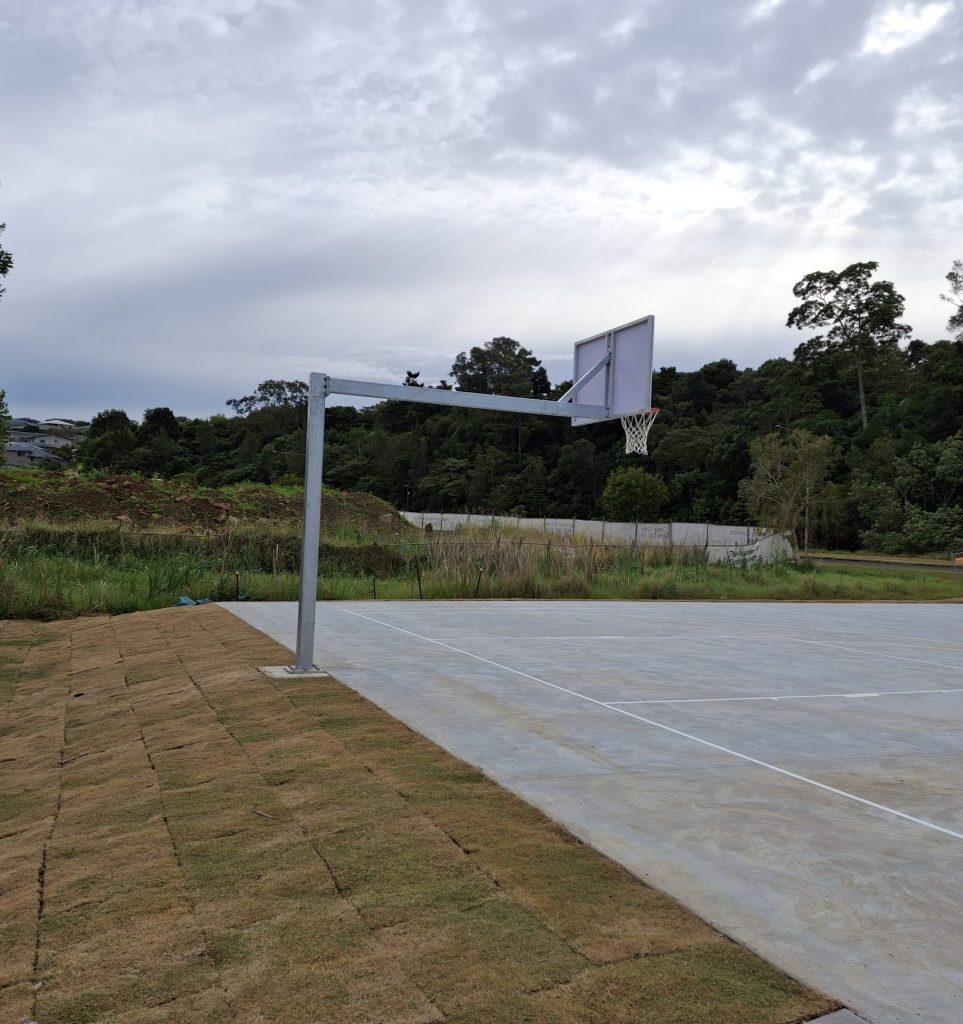

S132 / S132BP

FIXED 3.2M OUTREACH BASKETBALL TOWER

Featuring a new 3.2m outreach arm, this tower allows a full 2 metre safe clearance from the baseline to the front pole face for a more optimised playing space to suit your court size. The S132 is Hot Dip Galvanised for longevity, where the backboard frame is made using aluminium.

S132BP: The Unit is fixed to a Base Plate

FEATURES

  • 150mm square main pole with a 3.2m outreach arm
  • B1810 full size noise dampened backboard attached to aluminium frame
  • 300kg load rating ring with Waverail net attachment (eliminates broken hooks & net entanglement)
  • 25 Year Manufacturers Warranty on pole and arm / 10 Year Warranty on polyboard backboard / 25 Year Warranty on ring / 1 Year Warranty on net
  • Note: A visual check over the tower should be conducted once a month to ensure the highest level of product performance.

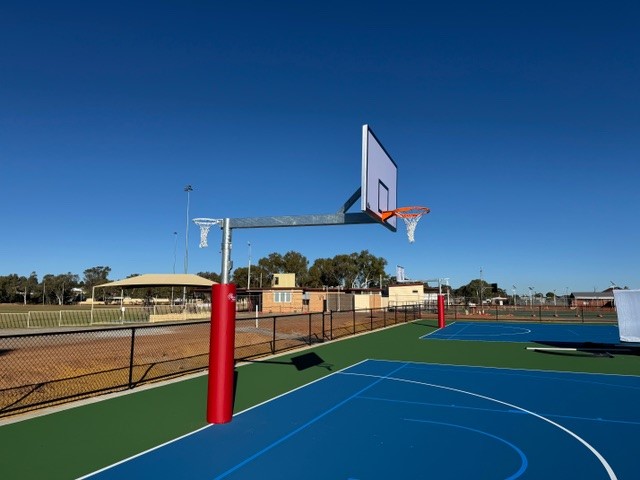

S125R

ROTATING 2.4M OUTREACH BASKETBALL/NETBALL TOWER

Designed for courts with combined 30.5m long netball and 28.0m basketball. The pole sits on the netball baseline and when rotated for basketball use, the 2.40m long arm will place the backboard 1.2m inside the basketball baseline. For ease of handling, the pole and arm are supplied separately. The board is fixed to the backboard frame in factory.

FEATURES

  • 140mm round main pole with 150mm x 100mm extension arm (2.4m outreach) which rotates at top of main pole
  • B1810 full size noise dampened backboard attached to aluminium frame
  • 300kg load rating ring with Waverail net attachment (eliminates broken hooks & net entanglement)
  • 25 Year Manufacturers Warranty on pole and arm / 10 Year Warranty on polyboard backboard / 25 Year Warranty on ring / 1 Year Warranty on net
  • Note: A visual check over the tower should be conducted once a month to ensure the highest level of product performance.

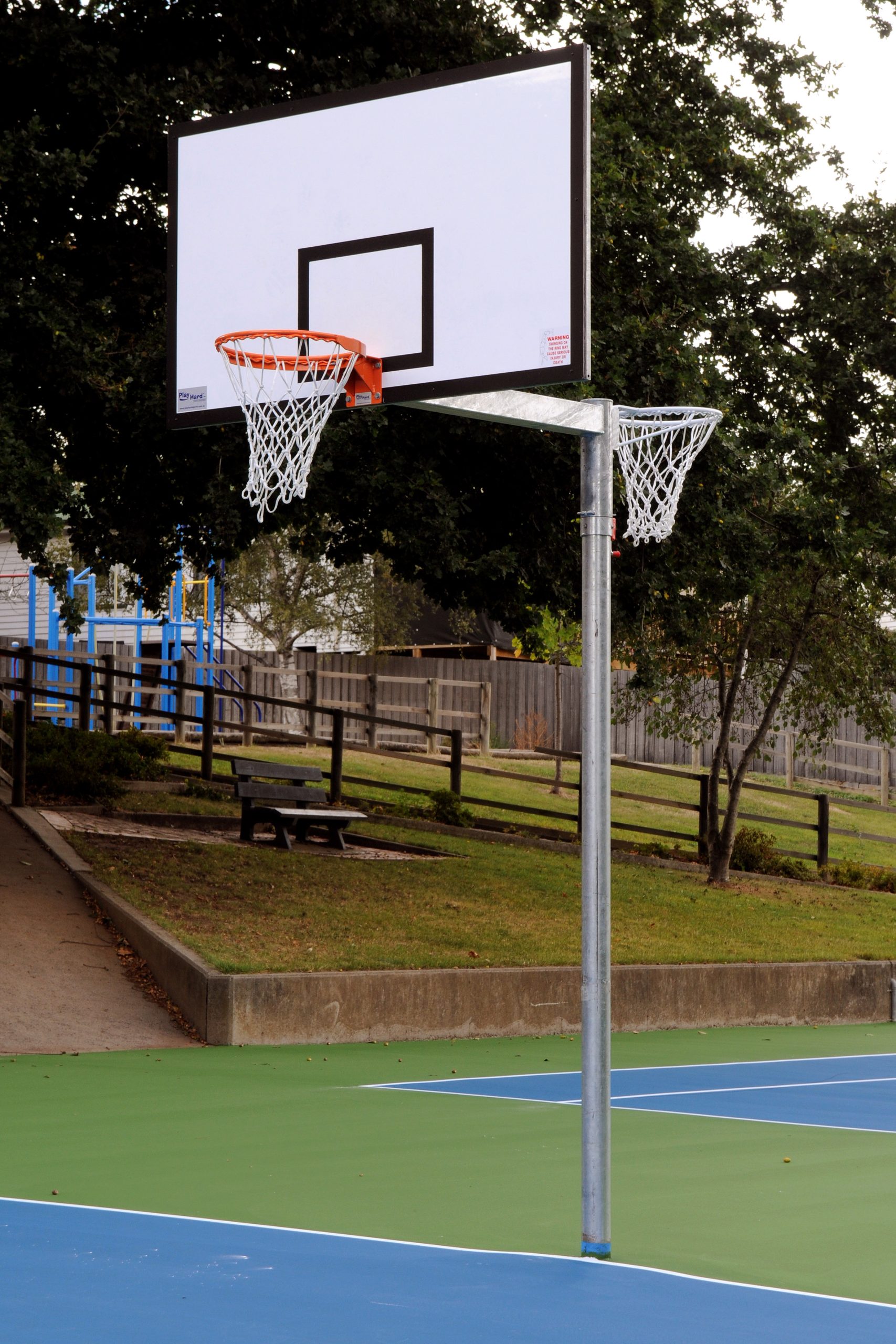

SN90R

ROTATING 1.2M BASKETBALL/NETBALL TOWER

This is a full-size rotating Basketball and Netball system that suit combined basketball and netball courts the same length.

The pole sits on the court baseline and when rotated for basketball use, the extension arm will place the backboard 1.2m inside the basketball baseline.

For ease of handling, the and arm are supplied separately, where the Backboard is fixed to the frame in factory.

FEATURES

  • Rotating basketball/netball tower for full length courts
  • 100mm round main pole + 100 x 100mm extension arm
  • Basketball to netball activity rotates with the aid of a light weight hand turning tool (Hand tool supplied)
  • B1810 full size noise dampened backboard attached to Aluminium Frame
  • 300kg load rating Pro Rim ring with Waverail net attachment (eliminates broken hooks & net entanglement)
  • 25 Year Manufacturers Warranty on pole and arm / 20 Year Warranty on polyboard backboard / 25 Year Warranty on rings / 1 Year Warranty on nets
  • Note: A visual check over the tower should be conducted once a month to ensure the highest level of product performance.

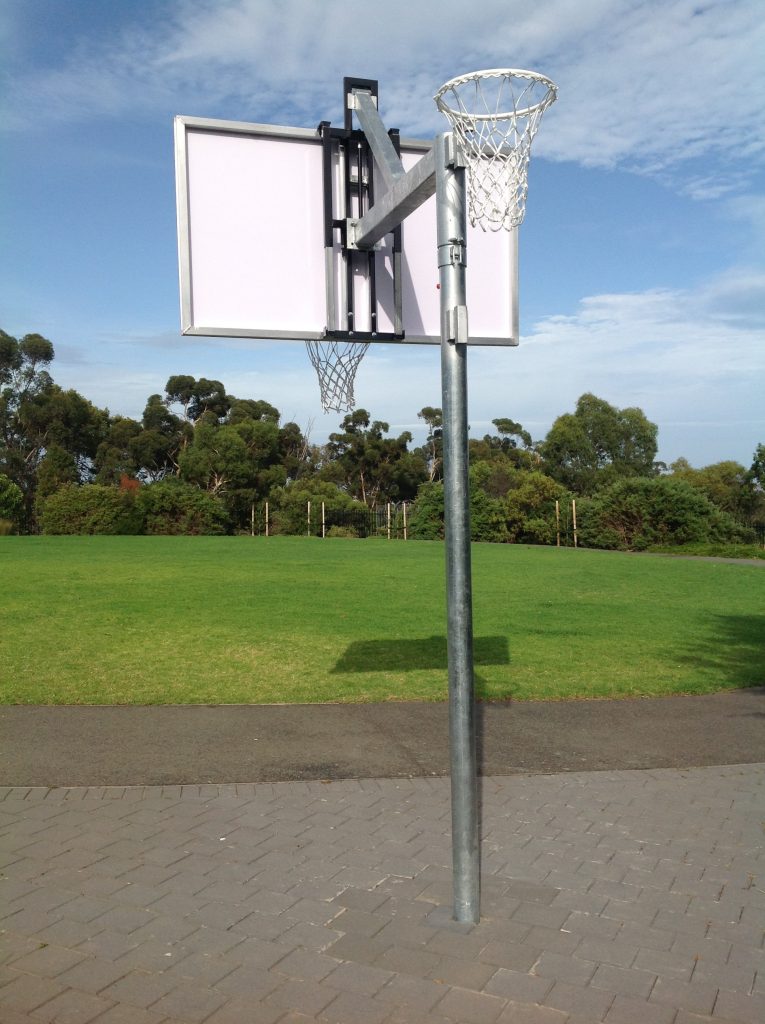

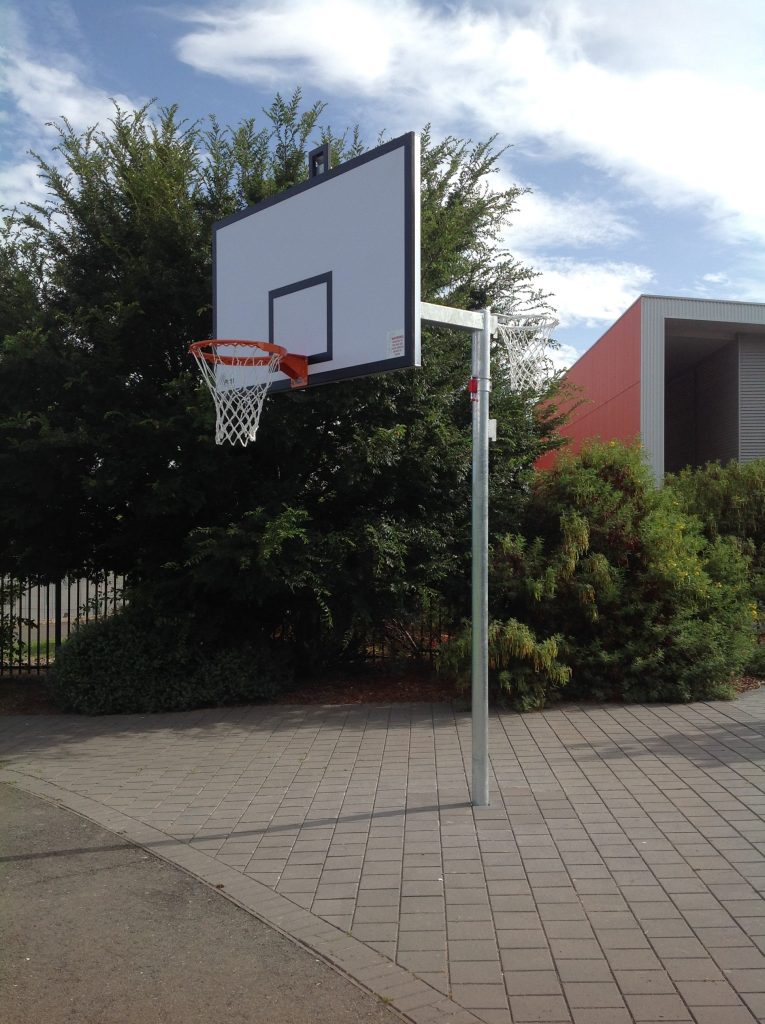

MULTIPLAY / MULTIPLAY 22

ROTATING BASKETBALL/NETBALL TOWER WITH HEIGHT ADJUSTING BACKBOARD + RING

This is a full-size rotating and height adjustable Basketball and Netball system, fitted with an integrated Height Adjustable Backboard Frame and 2 fixed Netball Ring points to change the height.

Multiplay (1.2m outreach) – This is the SN90r featuring height adjustable options for both Basketball & Netball. Suited for Basketball/Netball Courts sharing the same baseline. The pole sits on the court baseline and when rotated for Basketball use, the extension arm will place the backboard 1.2m inside the Basketball baseline.

Multiplay 22 (2.2m outreach) – This is the S125r featuring height adjustable options for both Basketball & Netball. Suited for Full Size Basketball/Netball Courts. The pole sits on the Netball Baseline and when rotated for Basketball use, the 2.2m extension arm will place the backboard 1.2m inside the Basketball baseline.

Both of these units are fitted with the gas strut assisted SHF18 Backboard Frame that changes the Basketball ring height from Senior 3.05m to Junior 2.6m. The NR31a Netball Ring is removable to switch to both Senior and Junior playing heights.

FEATURES

  • Rotating basketball/netball tower with adjust ability for senior and junior activity
  • B1810 full size noise dampened backboard attached to SHF18 Height Adjustable Aluminium Frame
  • NR31a Netball Ring with (2) separate attachment points, that adjust the ring from Senior 3.05m to Junior 2.4m
  • Basketball to netball activity rotates with the aid of a light weight hand turning tool (Hand tool supplied)
  • 300kg load rating Pro Rim ring with Waverail net attachment (eliminates broken hooks & net entanglement)
  • 25 Year Manufacturers Warranty on pole and arm / 20 Year Warranty on polyboard backboard / 2 Year Warranty on hight adjustment frame / 25 Year Warranty on rings / 1 Year Warranty on nets
  • Note: A visual check over the tower should be conducted once a month to ensure the highest level of product performance.

BACKBOARDS & FRAMES

SHF12 / SHF18

HEIGHT ADJUSTING BACKBOARD FRAME

Our aluminium height adjusting frame is used to change the ring height from 3.05m senior height to 2.6m for junior players.

Available to suit both full size (1.8m wide) and practice size (1.2m wide) backboards. These frames can be used with all basketball units including the new MultiPlay rotating netball and basketball system.

KEY FEATURES

  • 5 Year Manufacturers Warranty
  • Consists of 2 frames sliding on rails for ease of adjustment
  • Gas lifter integrated within the frame
  •  Light weight hand tool provided for height adjustment
  • Note: A visual check over the product should be conducted once a month to ensure the highest level of product performance.

B1810P

POLYBOARD BACKBOARD

This is our standard backboard provided with all basketball towers. The backboard is made from polyvinyl which does not deteriorate or rot in the weather like plywood does. Polyvinyl also has reduced ball impact noise and is 100% UV stable.

B1810p: 1800mm x 1050mm

FEATURES

  • 5 Year Manufacturers Warranty
  • All weather Polyboard Backboard (100% UV stable)

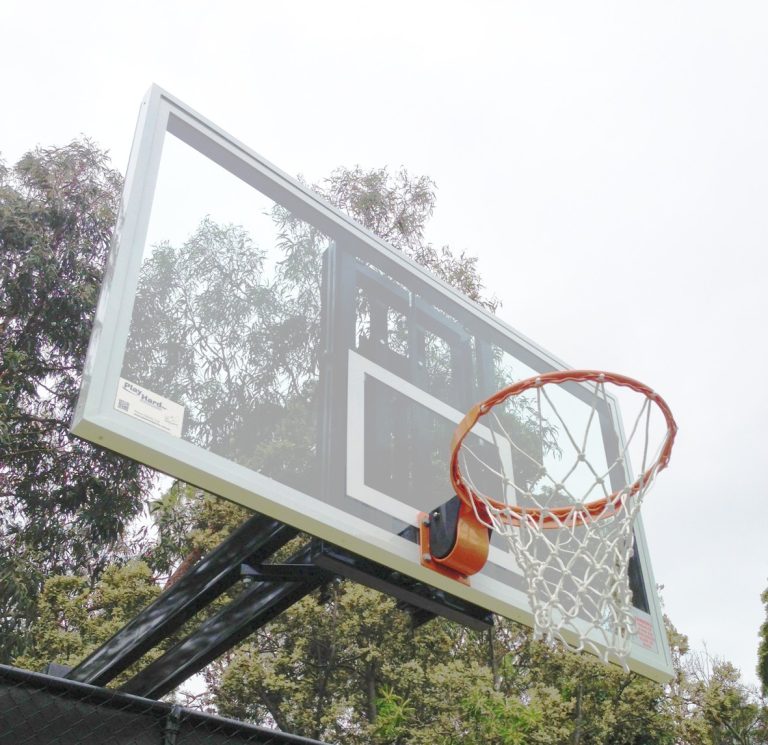

B1290A / B1810A

ACRYLIC BACKBOARD

Our clear acrylic backboard improves the look and feel of your whole basketball unit. The acrylic backboard will give your basketball tower that professional look you’ve always wanted.

Sizes available:
B1290a: 1200mm x 900mm
B1810a: 1800mm x 1050mm

FEATURES

  • 5 Year Manufacturers Warranty
  • All weather proof Acrylic Backboard

B1290G / B1810G

GLASS BACKBOARD

Our glass backboard is the top of the range backboard. Glass is used for competitions and those serious about having the best looking tower around! The clear appearance gives a professional look and its ball rebound quality is unmatched. As used in the NBA.
Glass backboards have unbelievable true rebound action and is more rigid and durable than all other backboard material.

Sizes available:
B1290g: 1200mm x 900mm
B1810g: 1800mm x 1050mm

FEATURES

  • 5 Year Manufacturers Warranty
  • Competition Grade Glass Material (used in NBA)
  • High rebound quality & more durable than other backboard materials

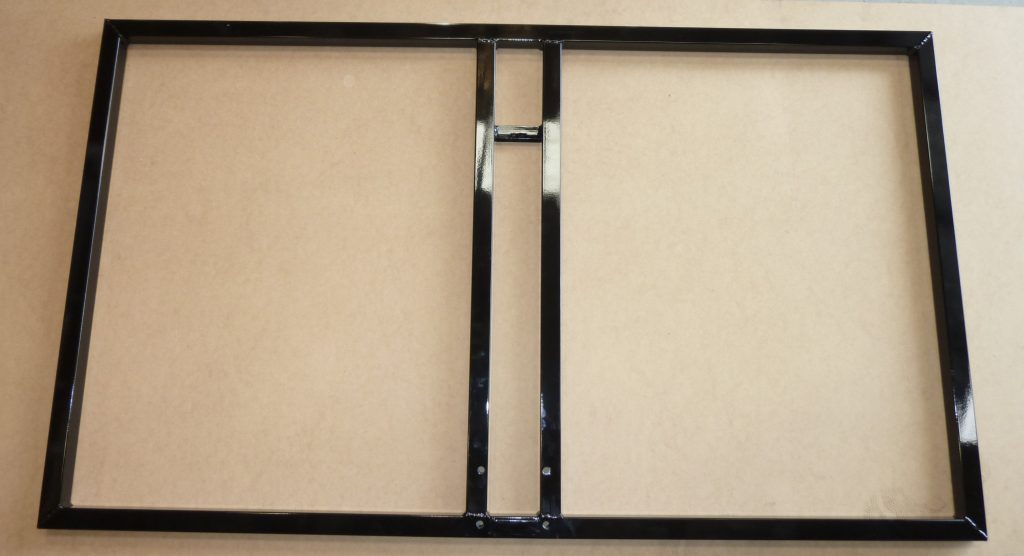

B18F

ALUMINIUM BACKBOARD FRAME

1800mm x 1050mm Aluminum backboard frame.

FEATURES

  • 5 Year Manufacturers Warranty

RINGS & NETS

PRO RIM RING

BASKETBALL RING

Top class fixed ring for stadium or outdoor use. This ring will withstand slam dunking and will not bend under severe use, as it features a 300kg load rating.



FEATURES

  • 25 Year Warranty on ring.
  • High tensile 16mm thick rim with wrap around brace
  • 5mm thick integrated mounting plate
  • 300kg load rating ring with Waverail net attachment (eliminates broken hooks & net entanglement)

DOUBLE RIM RING

BASKETBALL RING

This Ring is suited for outdoor courts where heavy use will be in play or within vandal-prone locations. The double rim provides a heavy duty structure as the ring has a 500kg load capacity rating.

It’s ideal for council half courts and unsupervised play areas.

FEATURES

  • 25 Year Warranty on ring.
  • High tensile 16mm thick Double rim with wrap around brace
  • 500kg load rating ring with Waverail net attachment (eliminates broken hooks & net entanglement)
  • 5mm thick integrated mounting plate

OZRING

COMPETITION SPRING RING

The OzRing Competition Spring Ring has an integrated spring that is maintenance-free and requirements no adjustments over time, giving the ring it’s longevity.

The ring has a 50mm wide wrap around brace providing a better visual target, a 16mm high tensile rim, rubber cushioned spring return, safety side covers and Waverail net tie system that will never tangle the net.

FEATURES

  • 25 Year Warranty on ring.
  • Maintenance-free spring (no sagging over time)
  • High tensile 16mm thick rim with 50mm wrap around brace (better visual target)
  • Rubber cushion spring return
  • Safety side covers
  • 300kg load rating ring with Waverail net attachment (eliminates broken hooks & net entanglement)

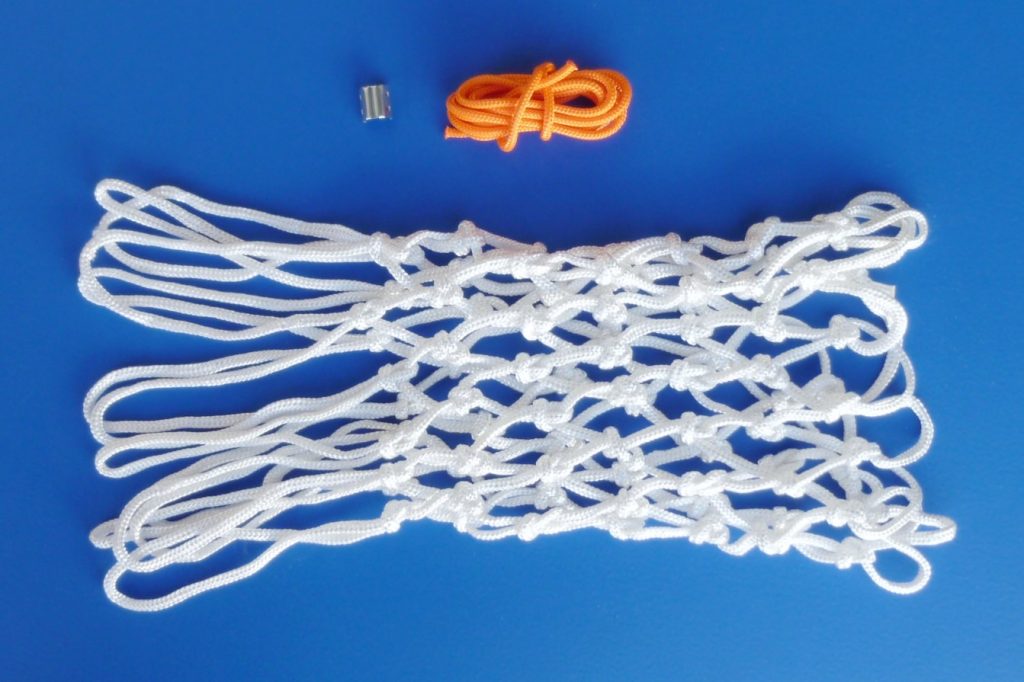

ANTI-WHIP NET

BNW8

Anti-whip white nylon net with attachment cord to fit Waverail Ring attachment. The upper part of the net is slightly stiff for longevity & avoidance of sagging.

KEY FEATURES

  • 1 Year Manufacturers Warranty

Waverail™ is the latest development in Basketball net tie methods. We use this method on all of our Basketball and Netball rings.

WAVERAIL™ – INFO & INSTRUCTIONS

RING NET TIE SYSTEM

With conventional ring net hooks, nets frequently tangle on the hooks, hooks often break off and players get cut fingers from net hooks when slam dunking. Our Waverail™ system is designed to avoid all these problems.

FEATURES

  • The net will never get caught up.
  • The wave shape rail will never break off.
  • There are no sharp edges for players to get cut fingers.
  • Nets last longer due to reduced cord abrasion.

ADDITIONAL ACCESSORIES

BASKETBALL POST PADDING

BP125S

2.06m high x 360mm round cylindrical foam basketball post padding with centre cut out to accommodate a 125mm square basketball post. Padding is enclosed in PVC vinyl canvas and has vertical velcro seam at rear. Multiple colours available. Your logo can be an added too.

Suits the S100, S125 and Force 10 basketball towers.

WARRANTY

  • 2 Year Manufacturers Warranty

EASY CHANGE KIT

REMOVABLE RING KIT

The ring mounting plate bolts directly to the backboard and allows the ring to be installed and removed with the hand tool.

Kit comprises two R11br removable rings, two BR5 brackets and one BR10 hand tool. Complies with QLD Education load ratings.

R11br, BR5 and BR10 also sold separately.

FEATURES

  • 5 Year Warranty on ring.
  • High Tensile 16mm thick rim
  • 14mm round support arms with 15mm thick mounting plates
  • Waverail Net Attachment system

FENCE COLLARS FOR POLES

BC COLLARS

BC collars are used to butt fence rails to basketball poles in the fence line.

Our range of fence collars include:
BC90 – four sided for 90sq poles
BC90/3 – three sided for 90sq poles
BC100 – four sided for 100sq poles
BC100/3 – three sided for 100sq poles
BC125 – four sided for 125sq poles
BC125/3 – three sided for 125sq poles
BC150 – four sided for 150sq poles
BC150/3 – three sided for 150sq poles

WARRANTY

  • 5 Year Manufacturers Warranty
