BASKETBALL TOWERS

All products supplied by PHS are designed in-house and all basketball towers have been Load tested to 250Kg and cycle tested to 100,000 cycles.

RAPTOR

SIDE SWING BASKETBALL TOWER

Are you looking for a tower to suit your multipurpose court? Are you limited for space but want room for several sports activities on the court? Then you need a Raptor Side Swing Tower. With only 1 hole to dig for a single pole, the Raptor Basketball Tower is used on Multipurpose Courts when various sports are being played, such as Volleyball, Netball or Tennis.

The Raptor can be set in line with the fence and also folds flat in line with the pole for optimal space and usage. The new aluminium main pole for the Raptor is considerably lighter allowing for less machinery/labour cost when installing allowing for additional cost savings. The main pole used to weigh 300Kg, and now with the new aluminium main pole it’s 95kg – reducing around 60% of the weight and making it easier to install.

FEATURES

  • Single 178mm square Aluminium Main Pole (95kg) –  Raptor 420 & 445
  • Single 200mm square Steel Main Pole – Raptor units with over 4.5m outreach
  • Integrated side swing feature on twin extension arm for backboard to sit flush with the baseline/fence.
  • 300kg load rating ring with Waverail net attachment (eliminates broken hooks & net entanglement)
  • Various sizes available to suit your court size as well as custom length option
  • 25 Year Manufacturers Warranty on pole and arm / 10 Year Warranty on polyboard backboard / 25 Year Warranty on ring / 1 Year Warranty on net.
  • Note: A visual check over the tower should be conducted once a month to ensure the highest level of product performance.
AVAILABLE OPTIONS:

Raptor 420: With a 34m long tennis court and 28m long basketball court, the Raptor 420 outreach from pole face to backboard face is 4.2m (3m from b/ball baseline to fence + 1.2m backboard overhang into b/ball court) when the pole is flush to the fence line.

Raptor 445: With an outreach of 4.45m, the Raptor 445 is suited to a 34.5m court.

Raptor E: For tennis courts longer then 34.5m, the longer extensions of Raptor E are used. For example, a 36m tennis court would require a Raptor E extension of 5.2m (4m from b/ball baseline to fence + 1.2m backboard overhang into b/ball court).

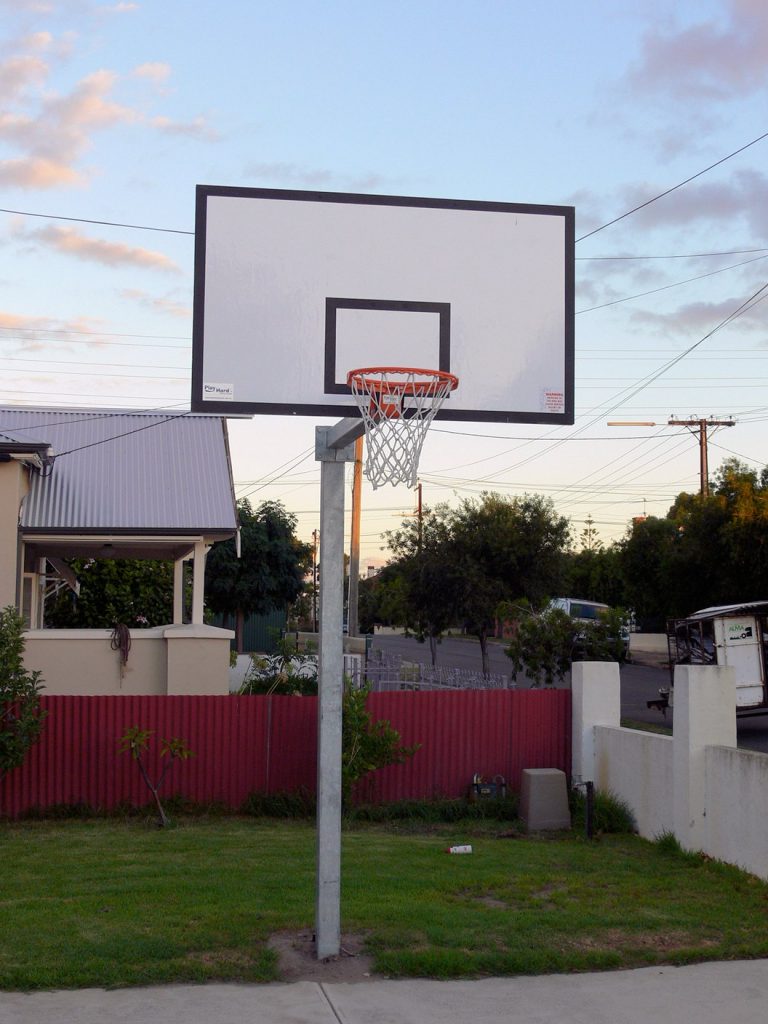

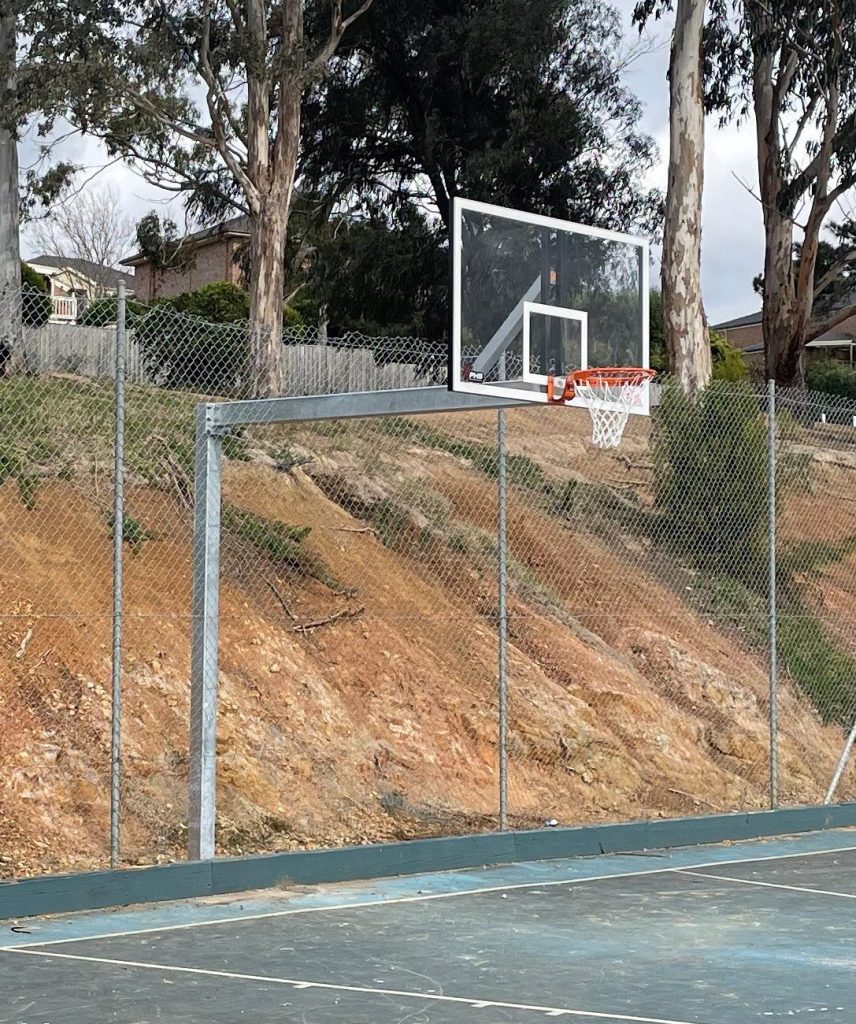

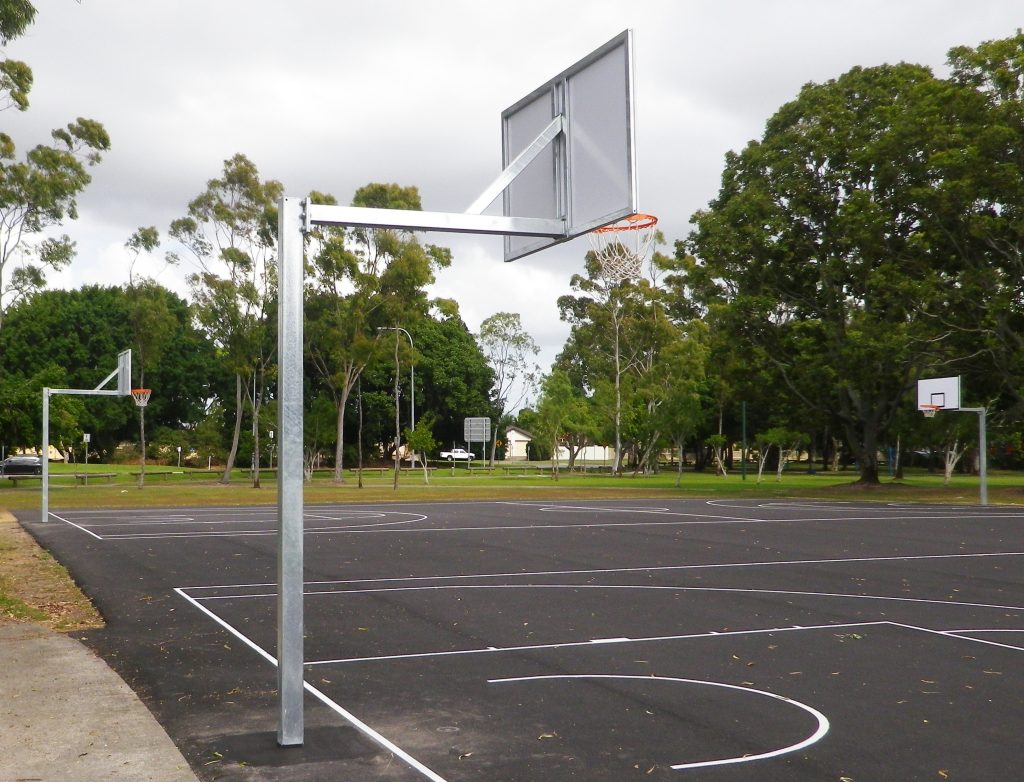

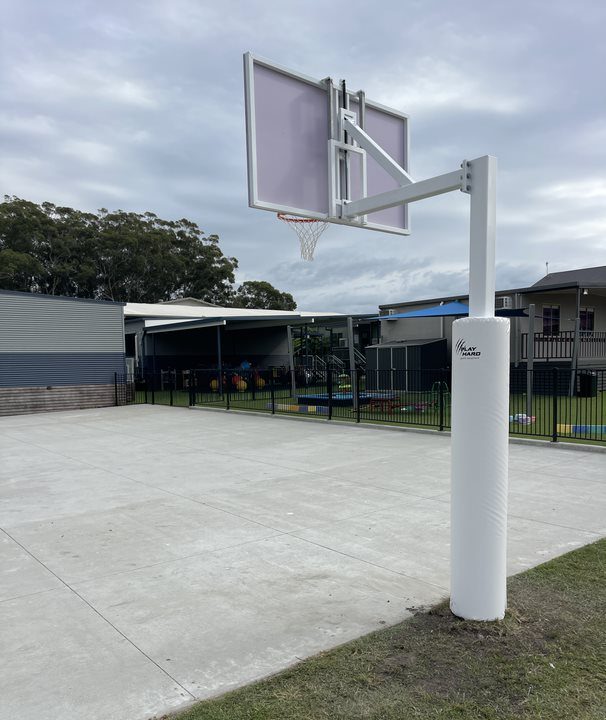

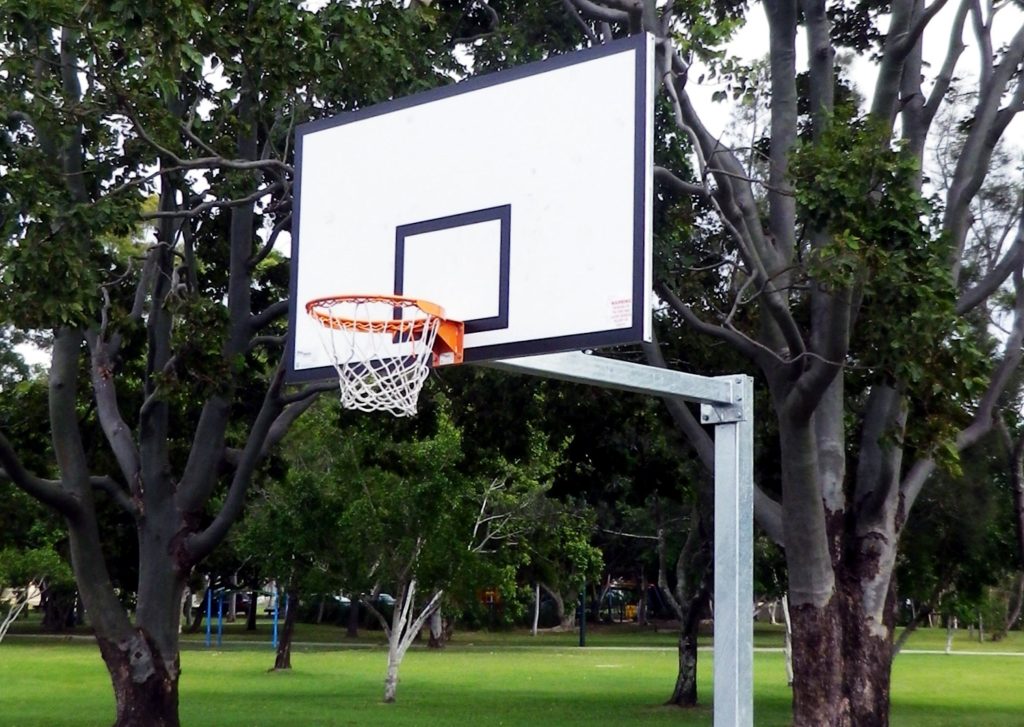

S100

FIXED 1.7M OUTREACH BASKETBALL TOWER

The S100 Basketball Tower is designed for full size basketball courts and practice areas. This tower is gives half a metre clearance from the baseline to the pole face and is durable and rigid. For ease of handling, the pole and arm are supplied separately. The polyboard backboard is fixed to the aluminium frame in the factory.

S100BP: The Unit is fixed to a Base Plate

FEATURES

  • 125mm square main pole with 100mm x 100mm extension arm (1.7m outreach)
  • B1810 full size noise dampened backboard attached to aluminium frame
  • 300kg load rating Pro Rim Ring with Waverail net attachment (eliminates broken hooks & net entanglement)
  • 25 Year Manufacturers Warranty on pole and arm / 10 Year Warranty on polyboard backboard / 25 Year Warranty on ring / 1 Year Warranty on net
  • Note: A visual check over the tower should be conducted once a month to ensure the highest level of product performance.

S125

FIXED 2.2M OUTREACH BASKETBALL TOWER

This tower is designed for full size basketball courts, council half courts and practice areas. This tower gives a full metre clearance from the baseline to the pole face and is extremely durable and rigid. For ease of handling, the pole and arm are supplied separately. The polyboard backboard is fixed to the aluminium frame in the factory.

FEATURES

  • 125mm square main pole with 150mm x 100mm extension arm (2.2m outreach)
  • B1810 full size noise dampened backboard attached to aluminium frame
  • 300kg load rating ring with Waverail net attachment (eliminates broken hooks & net entanglement)
  • 25 Year Manufacturers Warranty on pole and arm / 10 Year Warranty on polyboard backboard / 25 Year Warranty on ring / 1 Year Warranty on net
  • Note: A visual check over the tower should be conducted once a month to ensure the highest level of product performance.

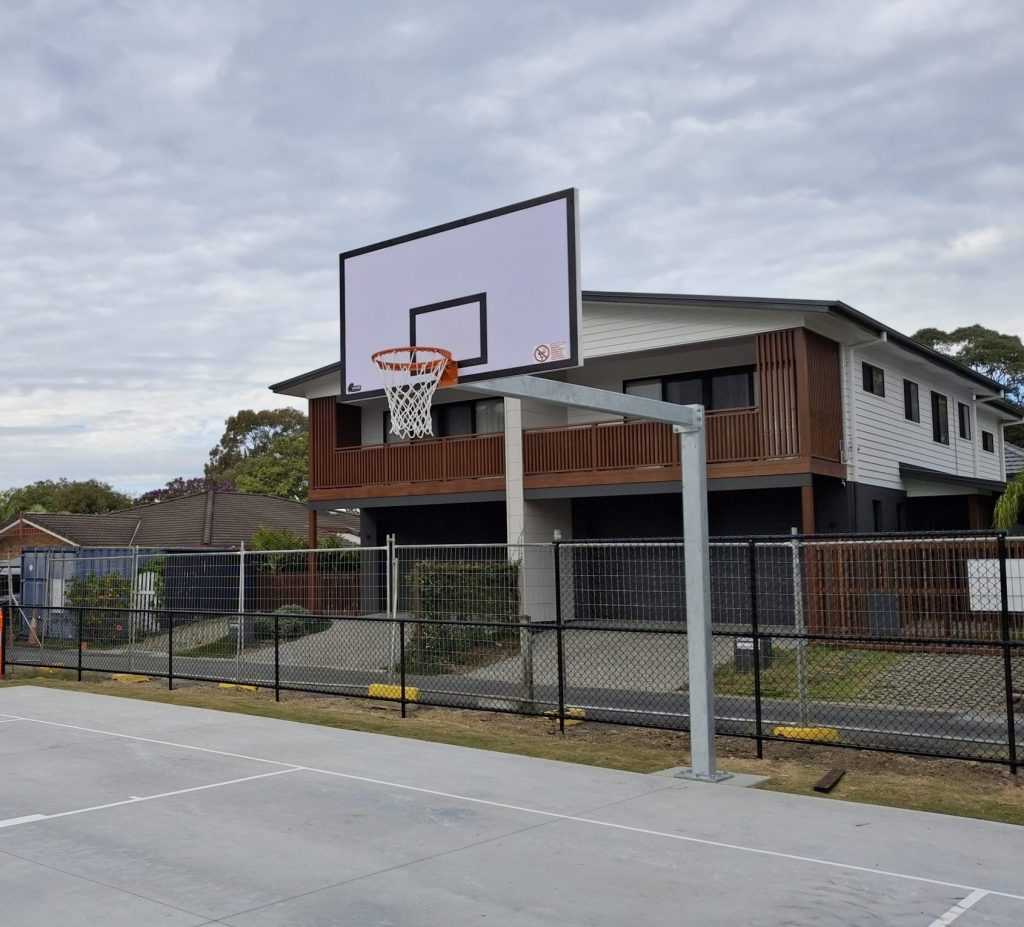

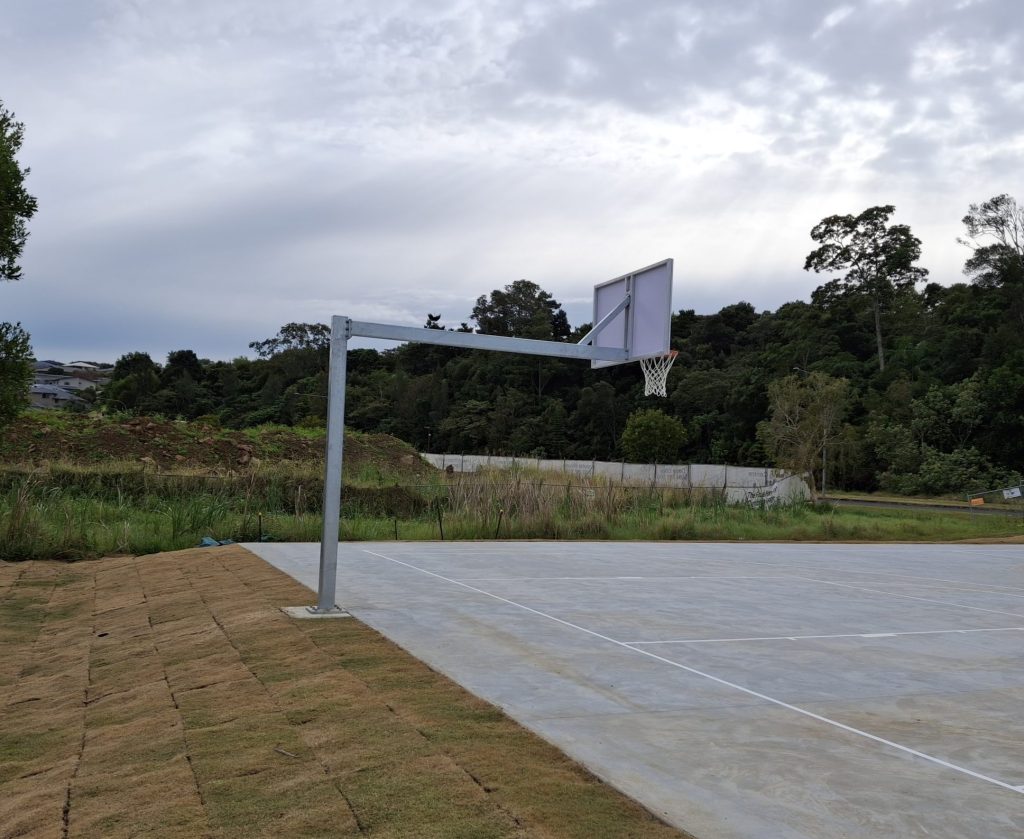

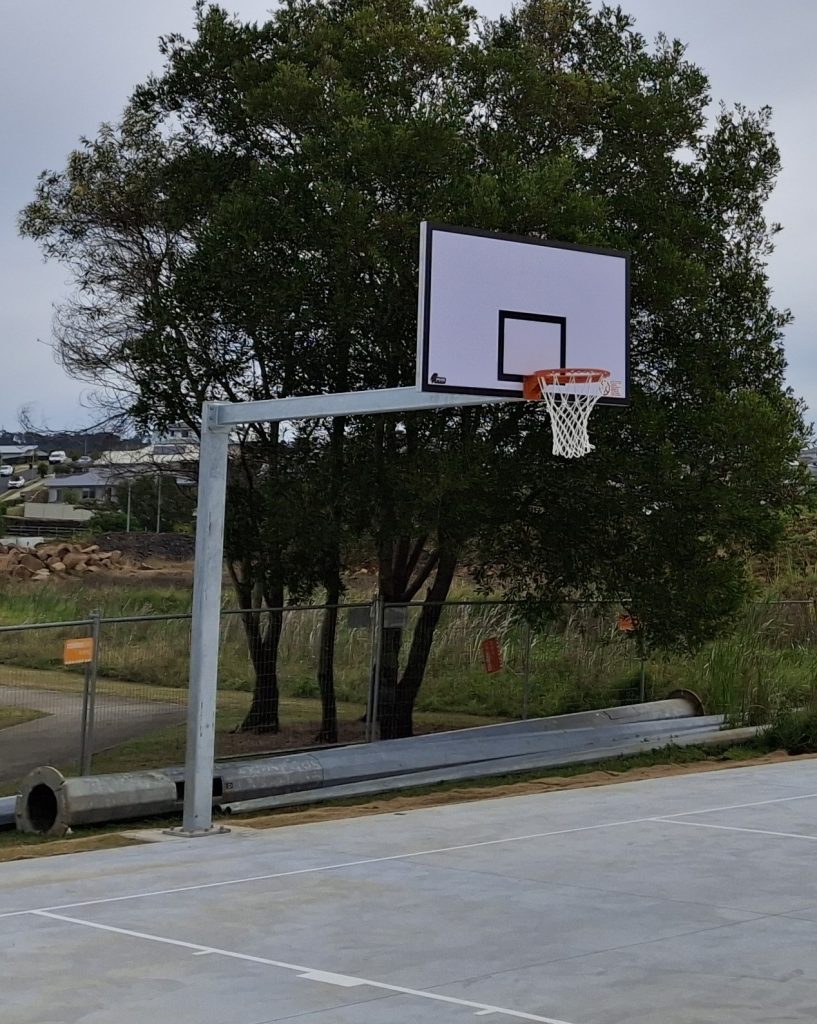

S132

FIXED 3.2M OUTREACH BASKETBALL TOWER

Featuring a new 3.2m outreach arm, this tower allows a full 2 metre safe clearance from the baseline to the front pole face for a more optimised playing space to suit your court size. The S132 is Hot Dip Galvanised for longevity, where the backboard frame is made using aluminium.

FEATURES

  • 150mm square main pole with a 3.2m outreach arm
  • B1810 full size noise dampened backboard attached to aluminium frame
  • 300kg load rating ring with Waverail net attachment (eliminates broken hooks & net entanglement)
  • 25 Year Manufacturers Warranty on pole and arm / 10 Year Warranty on polyboard backboard / 25 Year Warranty on ring / 1 Year Warranty on net
  • Note: A visual check over the tower should be conducted once a month to ensure the highest level of product performance.

S125R

ROTATING 2.4M OUTREACH BASKETBALL/NETBALL TOWER

Designed for courts with combined 30.5m long netball and 28.0m basketball. The pole sits on the netball baseline and when rotated for basketball use, the 2.40m long arm will place the backboard 1.2m inside the basketball baseline. For ease of handling, the pole and arm are supplied separately. The board is fixed to the backboard frame in factory.

FEATURES

  • 140mm round main pole with 150mm x 100mm extension arm (2.4m outreach) which rotates at top of main pole
  • B1810 full size noise dampened backboard attached to aluminium frame
  • 300kg load rating ring with Waverail net attachment (eliminates broken hooks & net entanglement)
  • 25 Year Manufacturers Warranty on pole and arm / 10 Year Warranty on polyboard backboard / 25 Year Warranty on ring / 1 Year Warranty on net
  • Note: A visual check over the tower should be conducted once a month to ensure the highest level of product performance.

SN90R

ROTATING 1.2M BASKETBALL/NETBALL TOWER

This is a full-size rotating Basketball and Netball system that suit combined basketball and netball courts the same length.

The pole sits on the court baseline and when rotated for basketball use, the extension arm will place the backboard 1.2m inside the basketball baseline.

For ease of handling, the and arm are supplied separately, where the Backboard is fixed to the frame in factory.

FEATURES

  • Rotating basketball/netball tower for full length courts
  • 100mm round main pole + 100 x 100mm extension arm
  • Basketball to netball activity rotates with the aid of a light weight hand turning tool (Hand tool supplied)
  • B1810 full size noise dampened backboard attached to Aluminium Frame
  • 300kg load rating Pro Rim ring with Waverail net attachment (eliminates broken hooks & net entanglement)
  • 25 Year Manufacturers Warranty on pole and arm / 20 Year Warranty on polyboard backboard / 25 Year Warranty on rings / 1 Year Warranty on nets
  • Note: A visual check over the tower should be conducted once a month to ensure the highest level of product performance.

MULTIPLAY / MULTIPLAY 22

ROTATING BASKETBALL/NETBALL TOWER WITH HEIGHT ADJUSTING BACKBOARD + RING

This is a full-size rotating and height adjustable Basketball and Netball system, fitted with an integrated Height Adjustable Backboard Frame and 2 fixed Netball Ring points to change the height.

Multiplay (1.2m outreach) – This is the SN90r featuring height adjustable options for both Basketball & Netball. Suited for Basketball/Netball Courts sharing the same baseline. The pole sits on the court baseline and when rotated for Basketball use, the extension arm will place the backboard 1.2m inside the Basketball baseline.

Multiplay 22 (2.2m outreach) – This is the S125r featuring height adjustable options for both Basketball & Netball. Suited for Full Size Basketball/Netball Courts. The pole sits on the Netball Baseline and when rotated for Basketball use, the 2.2m extension arm will place the backboard 1.2m inside the Basketball baseline.

Both of these units are fitted with the gas strut assisted SHF18 Backboard Frame that changes the Basketball ring height from Senior 3.05m to Junior 2.6m. The NR31a Netball Ring is removable to switch to both Senior and Junior playing heights.

FEATURES

  • Rotating basketball/netball tower with adjust ability for senior and junior activity
  • B1810 full size noise dampened backboard attached to SHF18 Height Adjustable Aluminium Frame
  • NR31a Netball Ring with (2) separate attachment points, that adjust the ring from Senior 3.05m to Junior 2.4m
  • Basketball to netball activity rotates with the aid of a light weight hand turning tool (Hand tool supplied)
  • 300kg load rating Pro Rim ring with Waverail net attachment (eliminates broken hooks & net entanglement)
  • 25 Year Manufacturers Warranty on pole and arm / 20 Year Warranty on polyboard backboard / 2 Year Warranty on hight adjustment frame / 25 Year Warranty on rings / 1 Year Warranty on nets
  • Note: A visual check over the tower should be conducted once a month to ensure the highest level of product performance.
