ATHLETICS

PEGASUS HURDLE (UNDER PRODUCT DEVELOPMENT)

INTRODUCING THE PEGASUS HURDLE

Quality Athletics Hurdles

Information Pending

FEATURES

  • 5 Year Manufacturers Warranty

POLE VAULT MAT COVER

TPV30

Steel framed Pole Vault mat cover with colorbond cladding. Suits up to Pole Vault mat size of 8.4m x 6.3m x 1m.

Pole Vault mat cover made up of 2 separate covers for ease of moving. Each with two x 400mm dia pneumatic foam filled wheels and two castors, galvanised steel frame.

Supplied in kit form, has no sharp edges, choice of colours, assembled on site. Assembly instructions provided.

The Pole Vault mat cover is easily wheeled away when the mat is in use.

KEY FEATURES

  • 10 Year Manufacturers Warranty (excluding wheels)
  • Note: A visual check over the Pole Vault mat cover should be conducted once a month to ensure the highest level of product performance.

THE CAGE FOR STADIUMS

INTRODUCING THE THOR10

Quality Hammer Throw Cages

This is the ultimate NCAA approved and World Athletics certified hammer throw cage with a patented design #9,889,366 B2 for use in stadiums and top level competition.

Check out our Apollo Installation video!

This is the ultimate NCAA approved and World Athletics certified hammer throw cage with a patented design #9,889,366 B2 for use in stadiums and top level competition.



THE CAGE YOU’LL WANT TO USE FOR YOUR SPORTING STADIUM

The Thor 10 is a four pole setup with steel poles on hinged base plates for easy installation, along with steel ground sleeves. The ground area has only the four support poles, offering great spectator visibility of the thrower during events.

Net height is set at 7m for the main perimeter of the cage and is held in place with retaining ropes all around the perimeter. Nets are set away from the structure to avoid any contact between the hammer and the poles. This negates rebound towards the thrower and reduces any chance of damage to the poles as well as the net. Gates are set 10m high and can be opened and closed independently with the gate ropes.

A THROW CAGE THAT’S BUILT TO SURVIVE THE ELEMENTS

More Thor 10 information

Thor 10 is wind rating to 100 km/h which means that the nets can be left in place during strong winds unlike many other cages. This reduces any manpower required to manage the cage and further reduces any cost involved.

Thor 10 is World Athletics certified and suitable for top level competition. This cage proves to be easy to maintain and is built to last so you won’t be searching for a replacement cage.
Note: Thor10D is the throwing cage suitable for a double circle application.

If you want to get an in depth look at our Thor 10 Hammer cage, please be sure to visit: https://www.hammerdiscuscages.com/hammer-cages/thor-10-hammer-cages/

SPEC SUMMARY:

10m high x 2m long gates that pivot 7m forward of circle centre. 7m high perimeter net. World Athletics certified and NCAA compliant, for stadium-type venues.

Call us for a quote

If you would like to learn more about our discus or hammer throw cages for your stadium, contact us on 1300 854 518, and one of our team members can take you through our process. We’re also happy to provide you with a quote if needed.

FEATURES

  • 5 Year Manufacturers Warranty on hard structure / 1 Year Warranty on net
  • Note: A visual check over the Thor 10 cage should be conducted once a month to ensure the highest level of product performance.

THE CAGE FOR CLUBS, SCHOOLS & COUNCILS

INTRODUCING THE THOR 9

Quality Hammer Throw Cages

This is the ultimate NCAA approved and World Athletics certified hammer throw cage with a patented design #9,889,366 B2 for use in stadiums and top level competition.


Spec Summary:
9m high x 3.2m long gates that pivot 4.2m forward of circle centre. 7m high perimeter net. World Athletics certified, for non-stadium type venues

The Thor 9 Hammer Throw Cage is a unique patent design #9,889,366 B2 that is set to change the future of Hammer Throw cages.

This efficient setup makes use of only 3 support poles leaving the ground area free from obstructions. This provides a clear view for spectators and also means the cage has minimal visual impact when not in use.

The 3 support poles are all on hinged base plates making installation even easier. The 7m high perimeter net is anchored with retaining ropes and is set away from the poles to reduce any chance of damage to the net and poles. The 9m high gates can be opened and closed easily with the gate ropes.

The Thor9 cage is much cheaper to maintain than other types of cages. This cage is wind rating to 100 km/h which means that the nets can be left in place during strong winds unlike many other cages. Not having to lower and re-raise the nets constantly reduces the manpower required to manage the cage and ultimately reduces any ongoing cost.

Thor9 is World Athletics certified and is built for long term use.

FEATURES

  • 5 Year Manufacturers Warranty on hard structure / 1 Year Warranty on net
  • Note: A visual check over the Thor 9 cage should be conducted once a month to ensure the highest level of product performance.

THE WORLD ATHLETICS CERTIFIED CAGE

INTRODUCING THE APOLLO IAAF CERTIFIED

Experience the Benefits of our Innovative Discus Cage Design

This is the ultimate NCAA approved and World Athletics certified hammer throw cage with a patented design #9,889,366 B2 for use in stadiums and top level competition.



A simplistic yet practical cage design



The installation process has been simplified greatly as the Apollo contains only four support poles on hinged bases. This makes it easy to raise the poles into position. This four pole design greatly improves the visibility of the thrower and also leaves the cage with an unobtrusive look when not in use.



The 6m high net is kept in position with 8 retaining ropes that are anchored to the ground. The four pole design removes any chance of discus contact with the poles thus avoiding any damage to the net. This reduces any ongoing costs.

Check out our Apollo Installation video!

WIND RESISTANT FOR ULTIMATE CONVENIENCE

This removable Discus Cage has six 48mm diameter posts with net hooks at the top. The Netting is 3.0m high, 90 ply with 44mm square mesh, as the PVC ground sleeves are supplied with chain lid covers. The cage poles can also be removed when not in use. This product comes with a galvanised finish.

SPEC SUMMARY:

6m high net. 4m high perimeter gate, 7m forward of circle centre. World Athletics certified and engineer certified.

WE OFFER A COMPREHENSIVE SUIT OF ATHLETIC EQUIPMENT

Whether you need equipment for track and field eventshammer throw or a variety of indoor and outdoor sports, we have the extensive range to cover your needs! Click on one of the links provided for additional information.

Call us on 1300 854 518 today for a free quote.

KEY FEATURES

  • Internationally Certified (World Athletics)
  • Easy to Install
  • Impressive Spectator Visibility
  • Minimal Maintenance
  • Wind rated to 100 km/h
  • Low Ongoing Cost
  • 5 Year Manufacturers Warranty on hard structure / 1 Year Warranty on net
  • Note: A visual check over the Apollo cage should be conducted once a month to ensure the highest level of product performance.

TAPE MEASURE ROD

TLJ95

A “walking stick” shaped rod with a pointed end to hold the tape measure in the sand pit.

2 Year Manufacturers Warranty

CAGE – REMOVABLE

TDS65

This removable Discus Cage has six 48mm diameter posts with net hooks at the top. The Netting is 3.0m high, 90 ply with 44mm square mesh, as the PVC ground sleeves are supplied with chain lid covers. The cage poles can also be removed when not in use. This product comes with a galvanised finish.

KEY FEATURES

  • 5 Year Manufacturers Warranty on hard structure / 1 Year Warranty on net
  • Note: A visual check over the cage should be conducted once a month to ensure the highest level of product performance.

CIRCLE – IN GROUND

TDS30

This removable Discus Cage has six 48mm diameter posts with net hooks at the top. The Netting is 3.0m high, 90 ply with 44mm square mesh, as the PVC ground sleeves are supplied with chain lid covers. The cage poles can also be removed when not in use. This product comes with a galvanised finish.

KEY FEATURES

  • 5 Year Manufacturers Warranty

CIRCLE – PORTABLE

TDS35

This Portable discus circle is 2.5m diameter, made from 25mm square steel and supplied in two halves which press together, along with a White finish.

5 Year Manufacturers Warranty

TROLLEY – DISCUS

TDS85

Discus trolley holds 24 discus in two rows. Drop down handle and buggy wheels.

TROLLEY – LITTLE “A” MULTIPURPOSE

TDS95

Little Athletics trolley that holds 10 discus from 350g to 1kg, 8 shot put and 6 javelin. Supplied with accessories box and buggy wheels.

5 Year Manufacturers Warranty

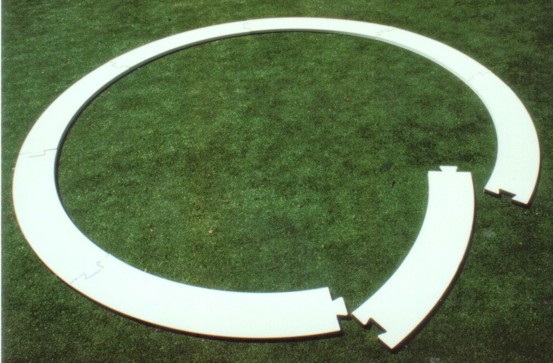

CIRCLE – CONVERSION DISCUS TO HAMMER

THM25

Eight piece circle converting 2.5m Discus circle to 2.135m dia for hammer use. Made from all weather synthetic material 20mm thick. Fits together with interlocking panels.

5 Year Manufacturers Warranty

TROLLEY – SHOT PUT

TSP90

Trolley holds 12 shot puts. Equipped with wheels and handle.

5 Year Manufacturers Warranty

TROLLEY – HAMMER THROW

THM90

This hammer trolley holds 12 balls with a holder for each hammer handle, along with buggy wheels, and fold down handle.

5 Year Manufacturers Warranty

Note: A visual check over the cart should be conducted once a month to ensure the highest level of product performance.

TROLLEY – MULTI PURPOSE

TDS90

Holds 6 hammers, 6 shots and 12 discus. Supplied with drop down handle and buggy wheels.

5 Year Manufacturers Warranty

Note: A visual check over the trolley should be conducted once a month to ensure the highest level of product performance.

CIRCLE – PORTABLE

TSP32

Portable shot put circle made from 25mm square steel section. Supplied in two halves which press together when in use.

5 Year Manufacturers Warranty

REMOVABLE TOE PLATE

TSP40

Removable steel Shot Put toe plate with ground spikes, ideal for temporary use, white finish.

5 Year Manufacturers Warranty

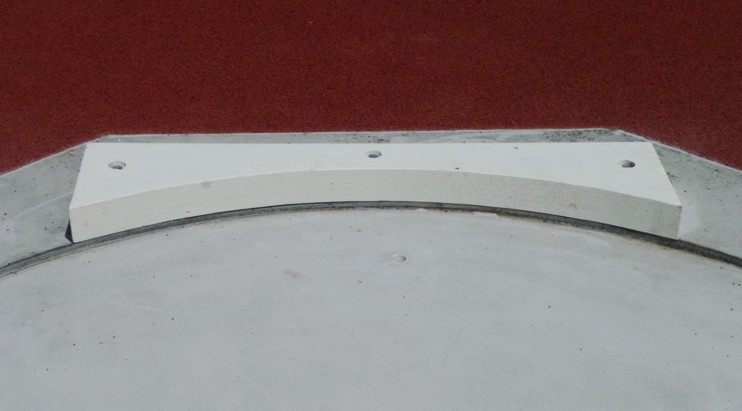

SHOTPUT TOE BOARD

TSP35

Shot Put toe board, 75 mm high made from UV stable synthetic material with anchor bolt holes, white gloss finish. The toe board sits flush to the surface outside the circle.

5 Year Manufacturers Warranty

TROLLEY – JAVELIN

TJV90

Holds 24 javelins.

HIGH JUMP MAT COVER

THJ30

Steel framed High Jump mat cover with COLORBOND® cladding. Suits up to High Jump mat size of 6.9m x 4.03m x 1.0m. Custom sizes are available.
With 22 colours in the range, you can choose a colour that matches or complements other building material choices.

Easy to use Tilt-a-door opening one end, two (2) x 400mm dia pneumatic foam filled wheels and two castors, galvanised steel frame.

Supplied in kit form, has no sharp edges, choice of colours, assembled on site. Assembly instructions provided.

The High Jump mat cover is easily wheeled away when the mat is in use.

Note: A visual check over the Mat cover should be conducted once a month to ensure the highest level of product performance.

FEATURES

  • 5 Year Manufactures Warranty

HURDLES & MAT TROLLEY

THJ55 & THJ50

Trolley with sheet steel top covered with marine carpet, pneumatic foam filled wheels and castors, tow-bar for hand or electric vehicle, galvanised finish. Can carry hurdles, pole vault mats or high jump mats.

THJ55 dimensions: 3m x 1.2m wide.
THJ50 dimensions: 3m x 1.6m wide.

Other trolley sizes available upon request.

Note: A visual check over the trolley should be conducted once a month to ensure the highest level of product performance.

FEATURES

  • 5 Year Manufactures Warranty

STAND – WEIGHTED BASE

THJ70

Stand to support the high jump crossbar, 35mm square posts with sliding arm, freestanding base frame, galvanised finish.

FEATURES

  • 5 Year Manufactures Warranty

STAND – GROUND SPIKES

THJ75

Stand to support the high jump crossbar, 35mm square posts with sliding arm, freestanding base frame, galvanised finish.

FEATURES

  • 5 Year Manufactures Warranty

TRACK INSTALLATION TROUGH

TLJ05

Aluminium trough 300mm wide x 1.22m long. When installed in the ground it is used to contain the long and triple jump TLJ22 take-off tray and boards.

FEATURES

  • Track Installation Trough

BLANKING TRAY

TLJ15

Aluminium tray 300mm wide x 1.22m long with adjustable legs. Track surface material is glued to the tray and placed into the TLJ05 installation trough when not in use.

FEATURES

  • 5 Year Manufacturers Warranty

SAND LEVELLER

TLJ85

A weighted steel bar with handle and cable both ends for leveling the sand pit.

5 Year Manufacturers Warranty

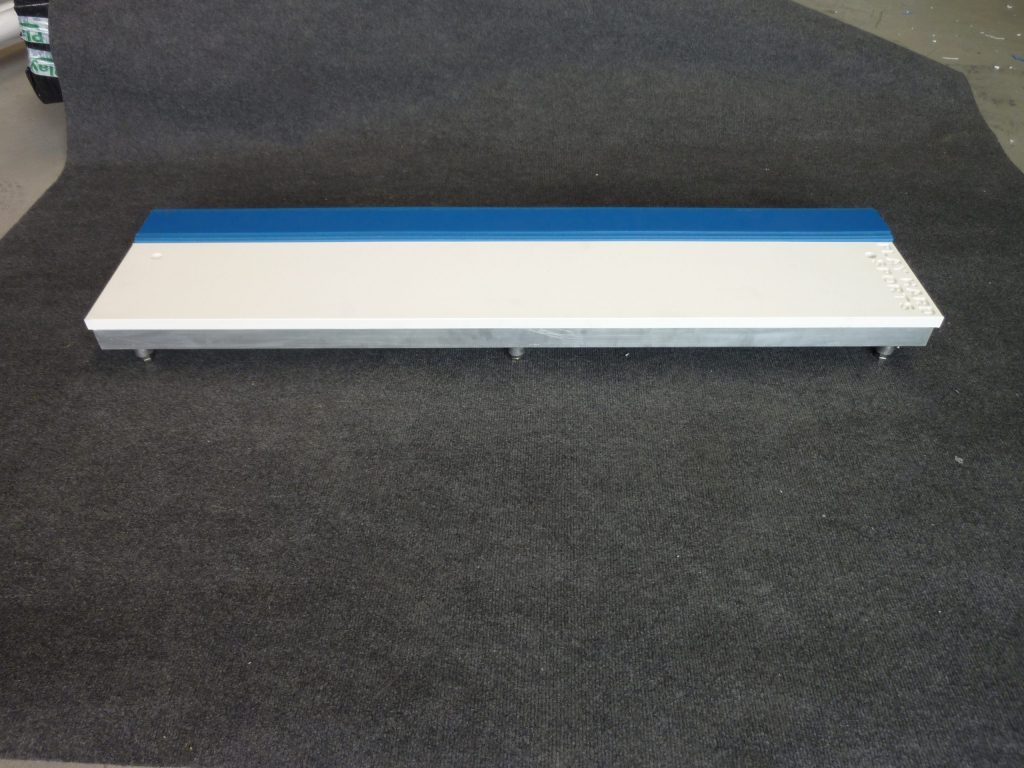

TAKE-OFF TRAY

TLJ22

Aluminium take – off tray 300mm wide x 1.22m long x 65mm

With weatherproof boards, flush toe board and adjustable legs.

Note: TLJ22p/100 is the Aluminium take – off tray that suits 100mm deep trough with weatherproof boards, flush toe board and adjustable legs.

FEATURES

  • 5 Year Manufacturers Warranty

TAKE-OFF BOARD

TLJ24

Long Jump take-off board 200 x 1220mm. 20mm UV stable, moisture proof polyboard, to fit TLJ22 tray. Coloured white.

FEATURES

  • 5 Year Manufacturers Warranty

TOE BOARD – RAISED

TLJ28

Long Jump toe board 100 x 1220mm. 20mm UV stable, moisture proof polyboard , coloured blue in this picture. Sits raised above the take-off board. To fit TLJ22 tray.

FEATURES

  • 5 Year Manufacturers Warranty

TOE BOARD – LEVEL

TLJ29

Long Jump toe board 100 x 1220mm. 20mm UV stable, moisture proof polyboard, and coloured. Sits level with the take-off board. To fit TLJ22 tray.

FEATURES

  • 5 Year Manufacturers Warranty

TAKE OFF TOE BOARD – IN GROUND

TLJ30

Long Jump hardwood take off toe board 300 x 50 x 1220mm Texture paint white and red. Install directly in to the ground.

Hardwood is known for its durability. This durability is attributable to its natural oils, which allows it to endure harsh temperatures and climates, saltwater and other extreme conditions.

FEATURES

  • 5 Year Manufacturers Warranty

SAND PIT COVER

TLJ80

Poly mesh, UV stable cover allows the pit to breathe while keeping animals and debris out. Made to any size. Supplied with eyelets to strap the cover to TLJ90 sand pit anchors.

FEATURES

  • 2 Year Manufacturers Warranty

TROUGH

TPV15

Steel Pole Vault trough, galvanised and coated white.

KEY FEATURES

  • 5 Year Manufacturers Warranty

TROUGH COVER

TPV20

Galvanised steel Pole Vault trough lid that sits just below surface level. Track surface material is then glued to the lid.

FEATURES

  • 5 Year Manufacturers Warranty

VAULTING POLE RACK

TPV40

A trolley containing eight racks for carrying the vaulting poles as well as a tow bar, and painted finish.

FEATURES

  • 5 Year Manufacturers Warranty

SCOREBOARD – 8 DIGITS

TPV55

Pole Vault scoreboard on wheels. Has two rows of four digits. Can be made to suite the customers own digits or digit boxes with adjustable levers.

FEATURES

  • 5 Year Manufacturers Warranty
  • Note: A visual check over the trolley should be conducted once a month to ensure the highest level of product performance.

VAULTING POLE RACK – SINGLE END

TPV50

A 1.2m high stand with eight arms. Used to support one end of the vaulting pole while athletes are practicing.

FEATURES

  • 5 Year Manufacturers Warranty

CART – OLYMPIC HURDLE

THD75

Holds 25 Olympic or Club size hurdles. The tow bar has a plate to connect to electric vehicles or can be supplied with ball joint coupling. Pneumatic wheels and castors, galvanised finish. This cart can be custom made to suit the customers existing hurdles.

FEATURES

  • 5 Year Manufacturers Warranty
  • Note: A visual check over the trolley should be conducted once a month to ensure the highest level of product performance.

CART – LITTLE “A” HURDLE

THD65

Holds 30 Little “A” size hurdles. The tow bar has a plate to connect to electric vehicles plus a hand tow bar. Wheels are 300mm diameter with roller bearings. This cart is made at the time of order to suit the type of hurdle it will be carrying.

FEATURES

  • 5 Year Manufacturers Warranty
  • Note: A visual check over the trolley should be conducted once a month to ensure the highest level of product performance.

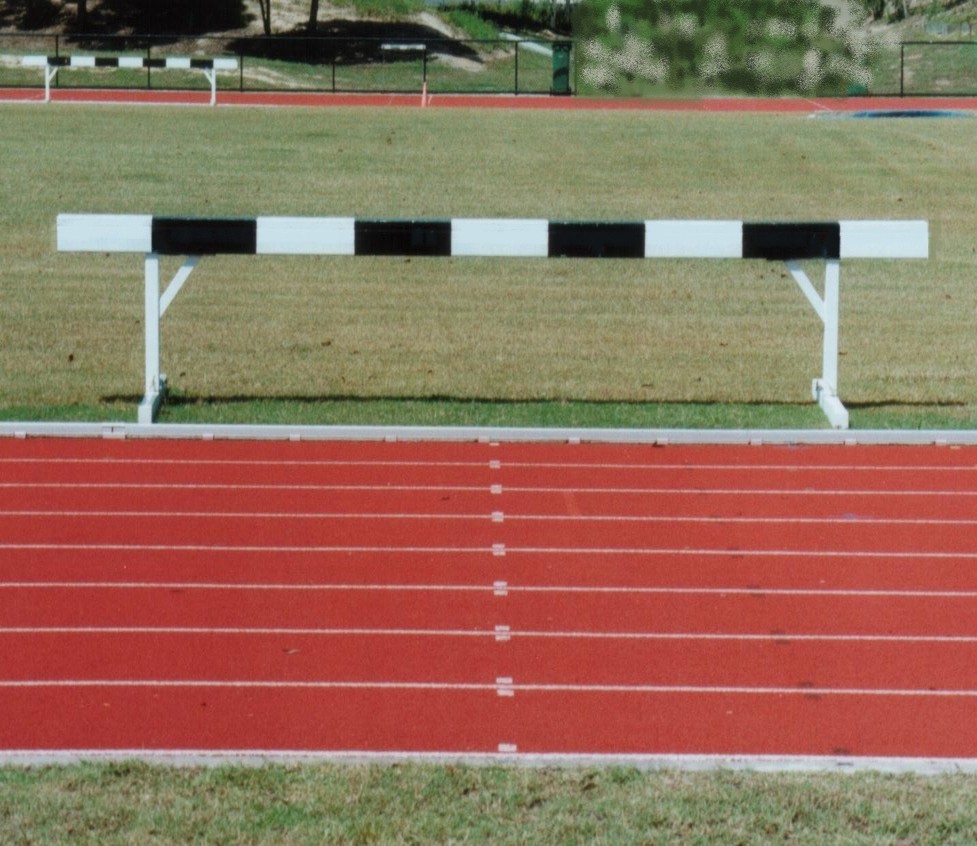

STEEPLE CHASE HURDLE – 3.96M

TSC40

Height adjustable steel beam supports, galvanised finish, 3.96m long timber beam. For replacement beams order TSC10.

FEATURES

  • 5 Year Manufacturers Warranty
  • Note: A visual check over the trolley should be conducted once a month to ensure the highest level of product performance.

STEEPLE CHASE HURDLE – 5M

TSC50

Height adjustable steel beam supports, galvanised finish, 5.0m long timber beam. For replacement beams order TSC15.

FEATURES

  • 5 Year Manufacturers Warranty
  • Note: A visual check over the trolley should be conducted once a month to ensure the highest level of product performance.

WATER JUMP HURDLE

TSC60

The hurdle consists of two height adjustable steel beam supports with mounting base plates. The timber hurdle beam is 3.66 m long x 127 mm square. Women’s height is 76.2 cm and mens height is 91.4 cm.

FEATURES

  • 5 Year Manufacturers Warranty
  • Note: A visual check over the trolley should be conducted once a month to ensure the highest level of product performance.

HURDLE – LITTLE “A”

THD25

Fixed hurdle with heights 45 / 60 / 68.6 / 76.2 cm. Wooden batten with rounded edges. Frame made from 25mm square steel.

FEATURES

  • 5 Year Manufacturers Warranty
  • Note: A visual check over the trolley should be conducted once a month to ensure the highest level of product performance.

HURDLE – LITTLE “A” COLLAPSIBLE

THD26

Hinged hurdle with height 45 / 60 / 68.6 / 76.2 cm. Wooden batten with rounded edges.

FEATURES

  • 5 Year Manufacturers Warranty
  • Note: A visual check over the trolley should be conducted once a month to ensure the highest level of product performance.

HURDLE – SCHOOL STANDARD

THD30

Similar to THD35 but with galvanised crossbar arms and heights from 76.2 / 84 / 91.4 / 99.1 cm. Steel frame with wooden crossbar.

FEATURES

  • 5 Year Manufacturers Warranty
  • Note: A visual check over the trolley should be conducted once a month to ensure the highest level of product performance.

HURDLE – CLUB STANDARD

THD35

Five height positions from 76.2 / 84 / 91.4 / 99.1 / 106.7cm. Steel frame with wooden crossbar.

FEATURES

  • 5 Year Manufacturers Warranty
  • Note: A visual check over the trolley should be conducted once a month to ensure the highest level of product performance.

HURDLE – OLYMPIC WITH MANUAL ADJUST

THD50

There are five height settings ranging from 76.2 / 84 / 91.4 / 99.1 / 106.7cm. Each leg has a counter weight and is manually adjusted by the lever on the side.

FEATURES

  • 5 Year Manufacturers Warranty
  • Note: A visual check over the trolley should be conducted once a month to ensure the highest level of product performance.

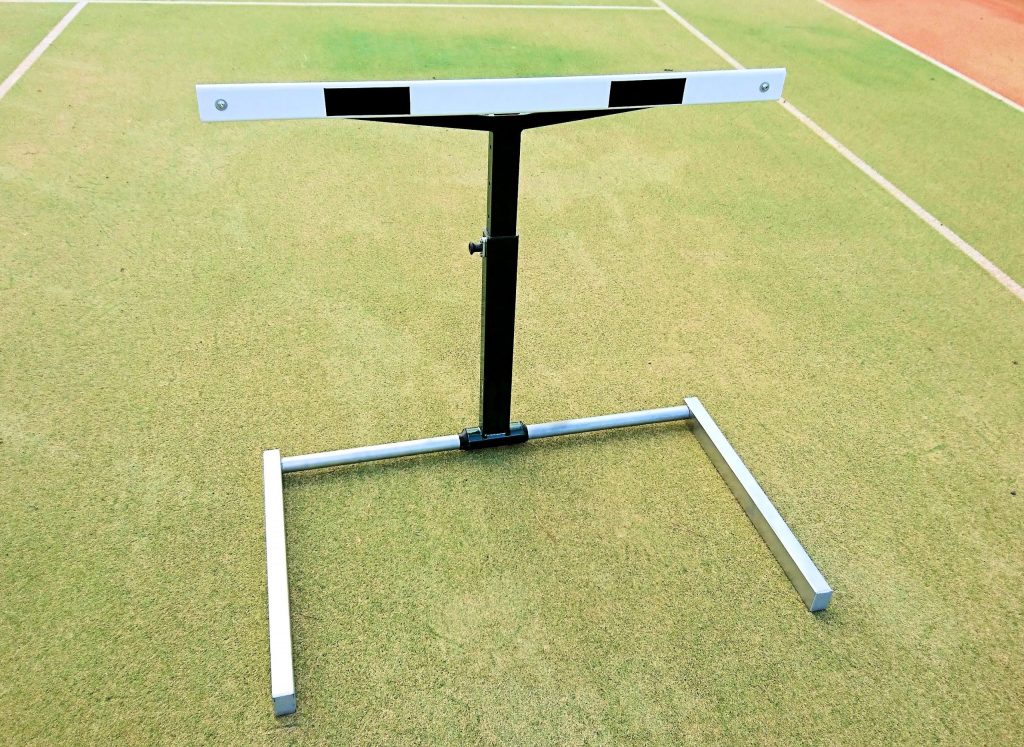

HURDLE – OLYMPIC WITH SELF ADJUST

THD51

This hurdle has an automatic weight adjustment mechanism which changes the counterweight position when the height of the bar is moved. Five height positions from 76.2 / 84 / 91.4 / 99.1 / 106.7cm.

FEATURES

  • 5 Year Manufacturers Warranty
  • Note: A visual check over the trolley should be conducted once a month to ensure the highest level of product performance.

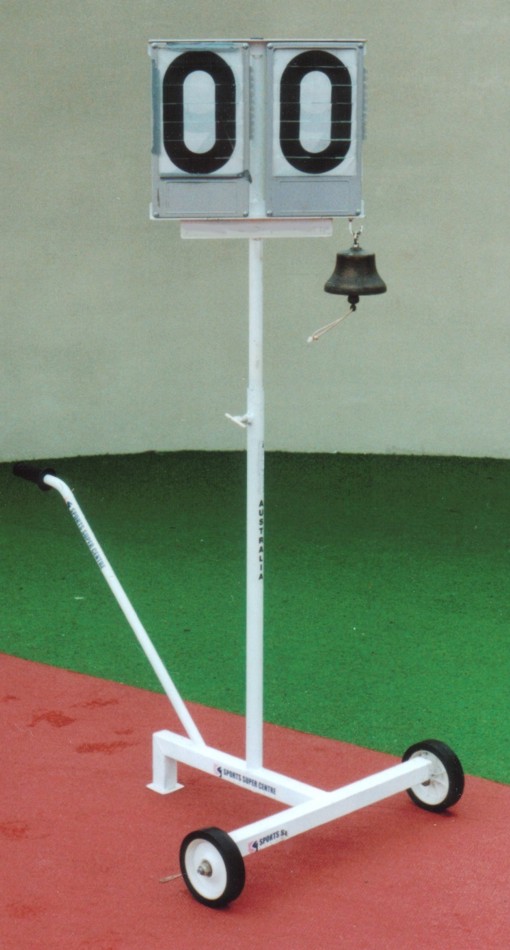

LAP COUNTER

TRN10

Two digit lap counter on wheels, height adjustable, includes bell. Choice of digits, TMS30 enclosed case type or TMS32 sliding panel style.

FEATURES

  • 5 Year Manufacturers Warranty
  • Note: A visual check over the product should be conducted once a month to ensure the highest level of product performance.

WIND SOCK

TMS55

Stand 1.5m high with weighted base and a sock, coated finish.

FEATURES

  • 2 Year Manufacturers Warranty

STARTERS STAND

TRN25

Elevated stand with 600 x 600mm platform plus step.

FEATURES

  • 5 Year Manufacturers Warranty
  • Note: A visual check over the product should be conducted once a month to ensure the highest level of product performance.

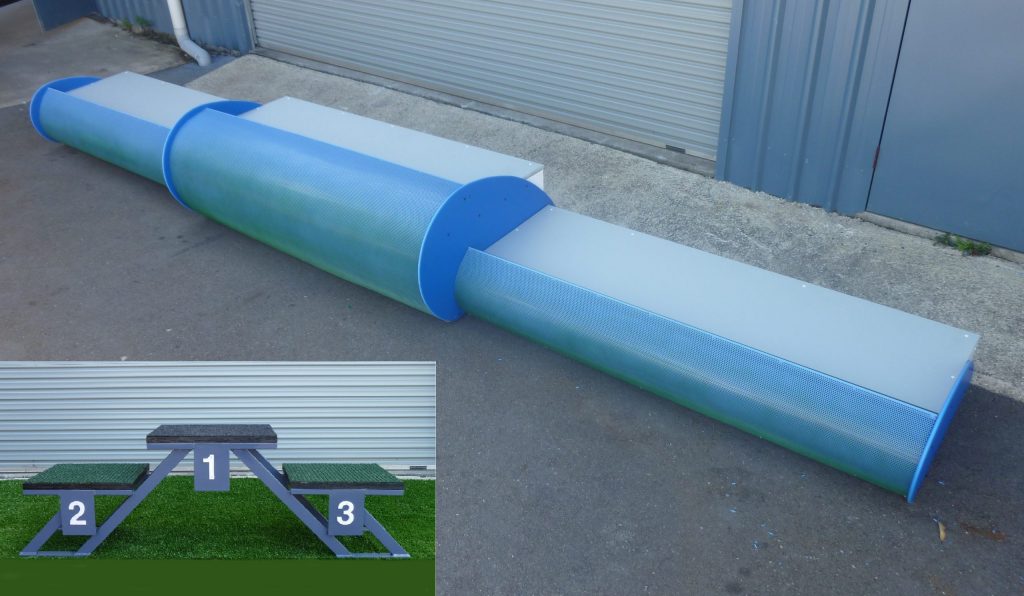

WINNERS PODIUM

TMS90

Podium with three platform heights, made from steel section with carpeted timber floors, available in several sizes from one to eight persons per platform, galvanised steel frame, coated finish.

FEATURES

  • 5 Year Manufacturers Warranty
  • Note: A visual check over the product should be conducted once a month to ensure the highest level of product performance.

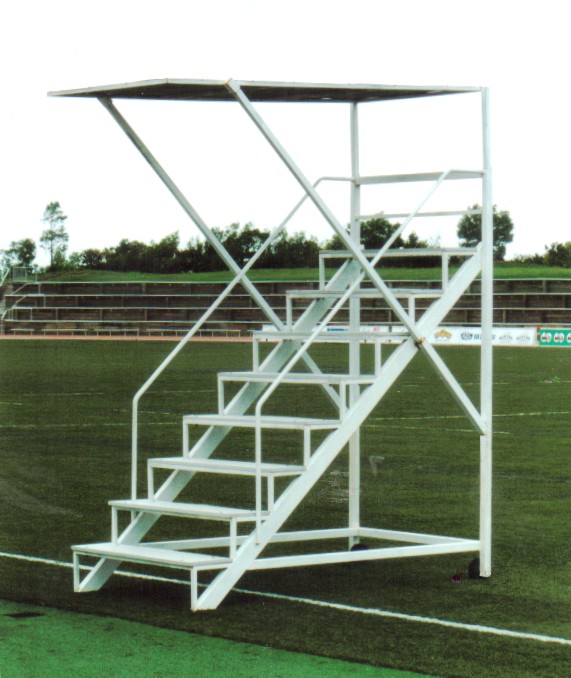

TIMERS STAND – WITH ROOF

TRN35 & TRN30

Eight person stand with one level per person . Can also be supplied without the roof (TRN30). Wheels are mounted on the back legs.

FEATURES

  • 5 Year Manufacturers Warranty
  • Note: A visual check over the product should be conducted once a month to ensure the highest level of product performance.

STARTERS STAND – PREMIUM

TRN26

Similar to the standard starters stand (TRN25) but has sides enclosed in a frame, mesh surrounding the platform, loud speaker support arm and items tray. Suitable for top level competition.

FEATURES

  • 5 Year Manufacturers Warranty
  • Note: A visual check over the product should be conducted once a month to ensure the highest level of product performance.

FINISH LINE POST

TRN45

Steel post 1600mm high, 115 x 40mm section coated white. The post fits into a ground sleeve for easy removal when not in use. Supplied with ground sleeve and cap.

FEATURES

  • 5 Year Manufacturers Warranty

LANE BARRIER GATES

TRN40

The 1.0m high boom arm pivots in a ground sleeve and can be locked in place. The arm length can be ordered in lengths to span one, two or three lanes. Galvanised and painted finish with contrasting stripes on the boom. Supplied with ground sleeve and cap.

FEATURES

  • 5 Year Manufacturers Warranty
  • Note: A visual check over the product should be conducted once a month to ensure the highest level of product performance.

LIKE ONE OF OUR PRODUCTS?

PRODUCT ENQUIRY

Please fill out the form and we will be in touch as soon as possible.
